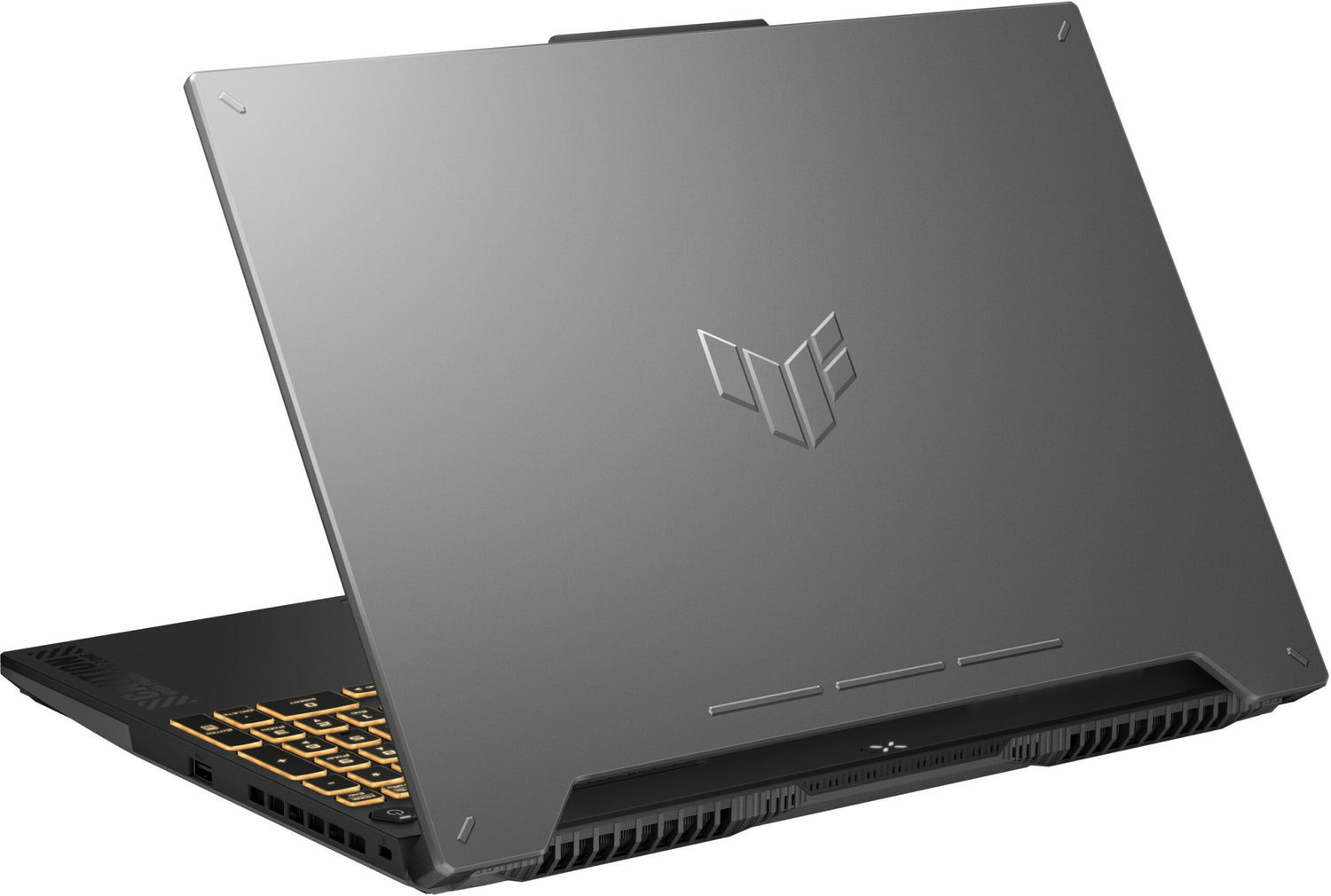

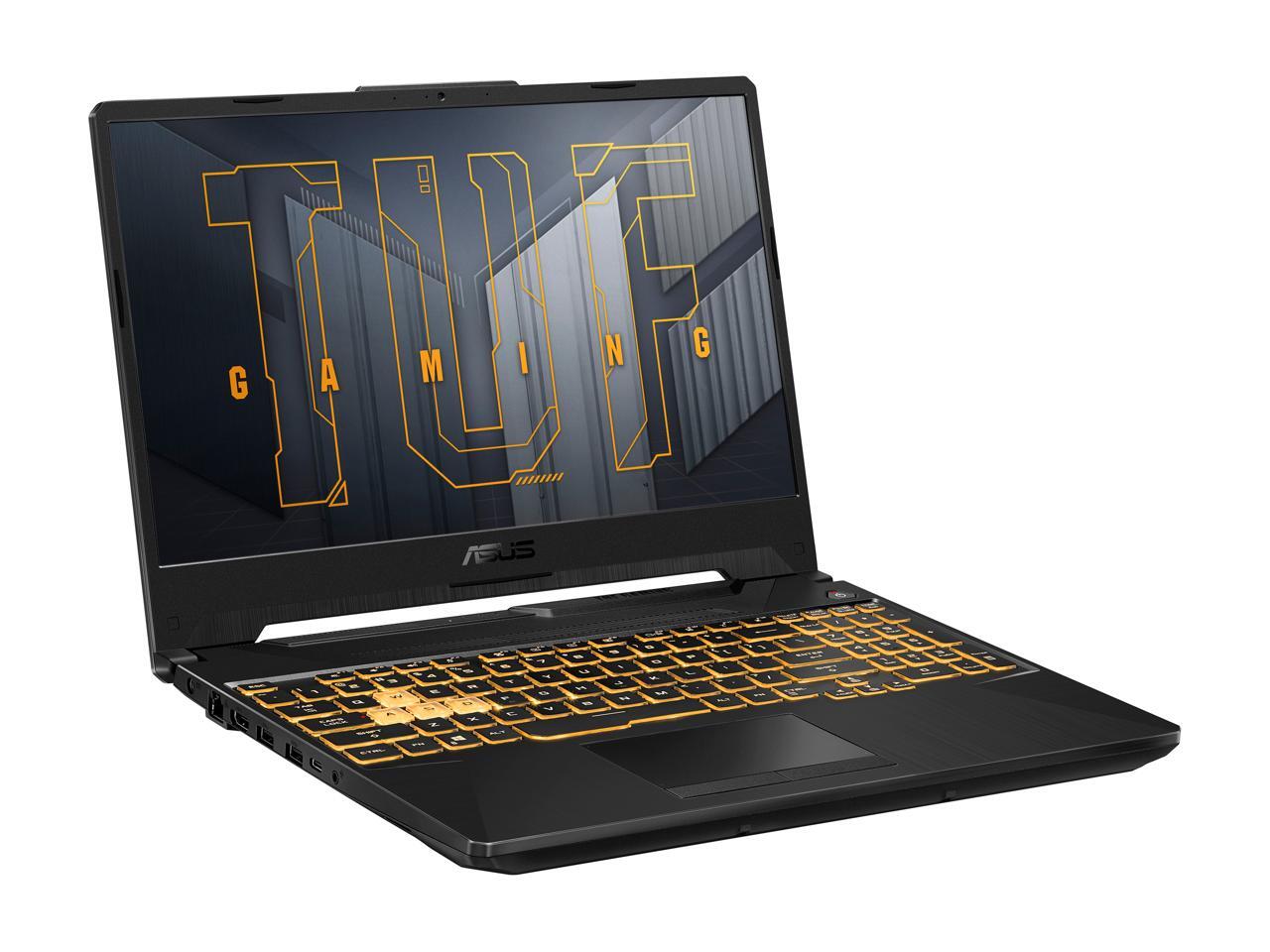

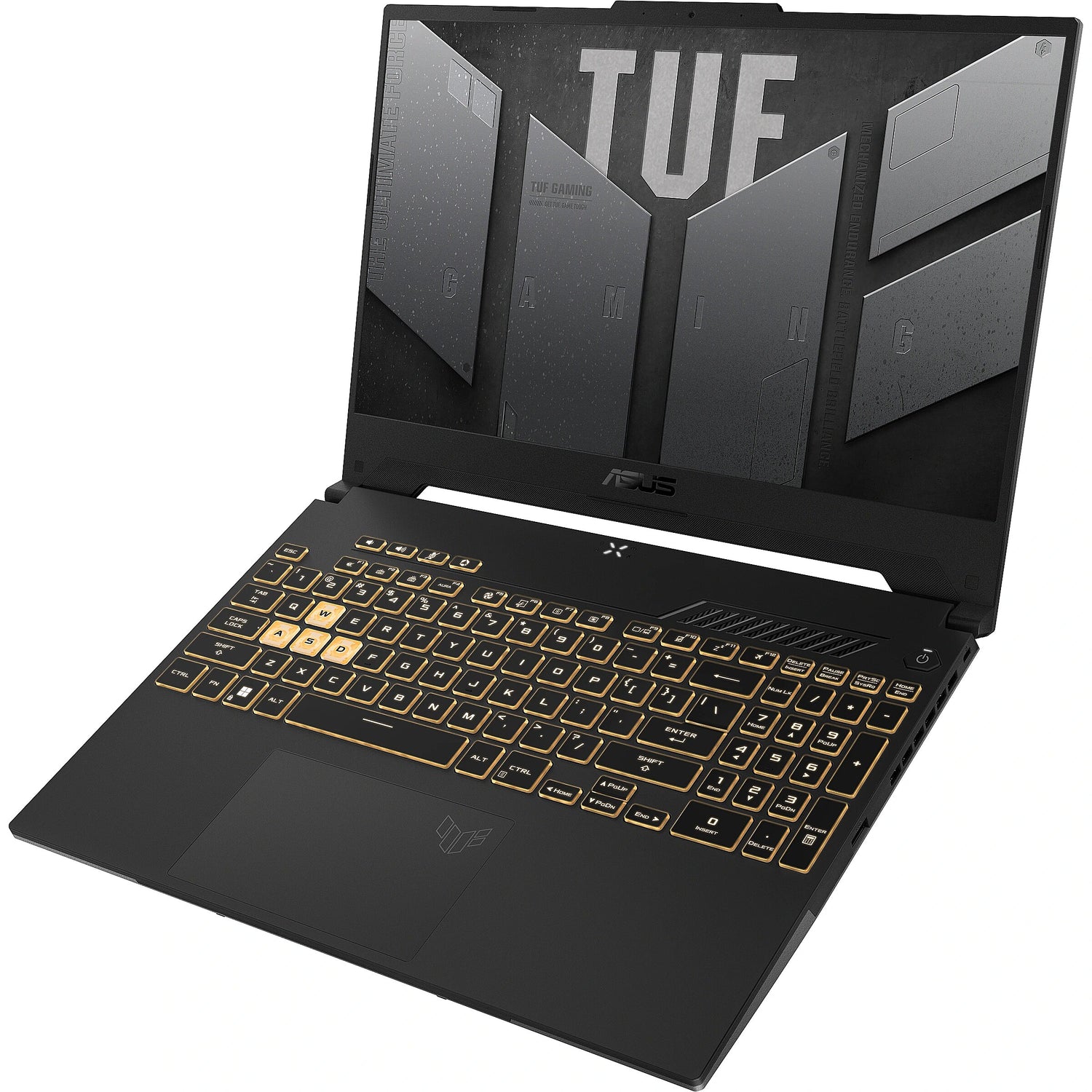

ASUS TUF Gaming F15 - 15.6" FHD 144hz / i7-13620H /RTX4060 /16GB ( 8G*2 ) /512G SSD / Win11 / 1 Year Warranty Notebook
Model Number
FX507VV-LP186W
Colour
Mecha Gray
Operating System
Windows 11 Home
Processor
13th Gen Intel® Core™ i7-13620H Processor 2.4 GHz (24M Cache, up to 4.9 GHz, 10 cores: 6 P-cores and 4 E-cores)
Graphics
NVIDIA® GeForce RTX™ 4060 Laptop GPU (233 AI TOPs)
8GB GDDR6
8GB GDDR6
Display
15.6-inch, FHD (1920 x 1080) 16:9, Value IPS-level, Anti-glare display, - sRGB: 100%, - Adobe: 75.35%, - Refresh Rate: 144Hz, G-Sync, MUX Switch + NVIDIA® Advanced Optimus
Memory
8GB DDR5-4800 SO-DIMM *2
Total System Memory: DDR5 16GB
Max Capacity: 64GB
Support dual channel memory
Total System Memory: DDR5 16GB
Max Capacity: 64GB
Support dual channel memory
Storage
512GB PCIe® 4.0 NVMe™ M.2 SSD
Expansion Slot (includes used)
2x DDR5 SO-DIMM slots
2x M.2 PCIe
2x M.2 PCIe
I/O Ports
1x RJ45 LAN port
1x Thunderbolt™ 4 with support for DisplayPort™ (data speed up to 40Gbps)
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 10Gbps)
2x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)
1x HDMI 2.1 FRL
1x 3.5mm Combo Audio Jack
1x Thunderbolt™ 4 with support for DisplayPort™ (data speed up to 40Gbps)
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 10Gbps)
2x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)
1x HDMI 2.1 FRL
1x 3.5mm Combo Audio Jack
Keyboard and Touchpad
Backlit Chiclet Keyboard 1-Zone RGB
Touchpad
Touchpad
Camera
720P HD camera
Audio
Dolby Atmos
AI noise-cancelling technology
Hi-Res certification (for headphone)
Support Microsoft Cortana near field/far field
Built-in array microphone
2-speaker system
AI noise-cancelling technology
Hi-Res certification (for headphone)
Support Microsoft Cortana near field/far field
Built-in array microphone
2-speaker system
Network and Communication
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.2 Wireless Card (*Bluetooth® version may change with OS version different.)
Battery
90WHrs, 4S1P, 4-cell Li-ion
Power Supply
ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal
Aura Sync
Yes
Weight
2.20 Kg
Dimensions (W x D x H)
35.4 x 25.1 x 2.24 ~ 2.49 cm
Ecolabels & Compliances
ENERGY STAR®
EPEAT Bronze
EPEAT Bronze
Security
BIOS Administrator Password and User Password Protection
Kensington Security Slot™
Trusted Platform Module (Firmware TPM)
McAfee® 30 days free trial
Kensington Security Slot™
Trusted Platform Module (Firmware TPM)
McAfee® 30 days free trial
