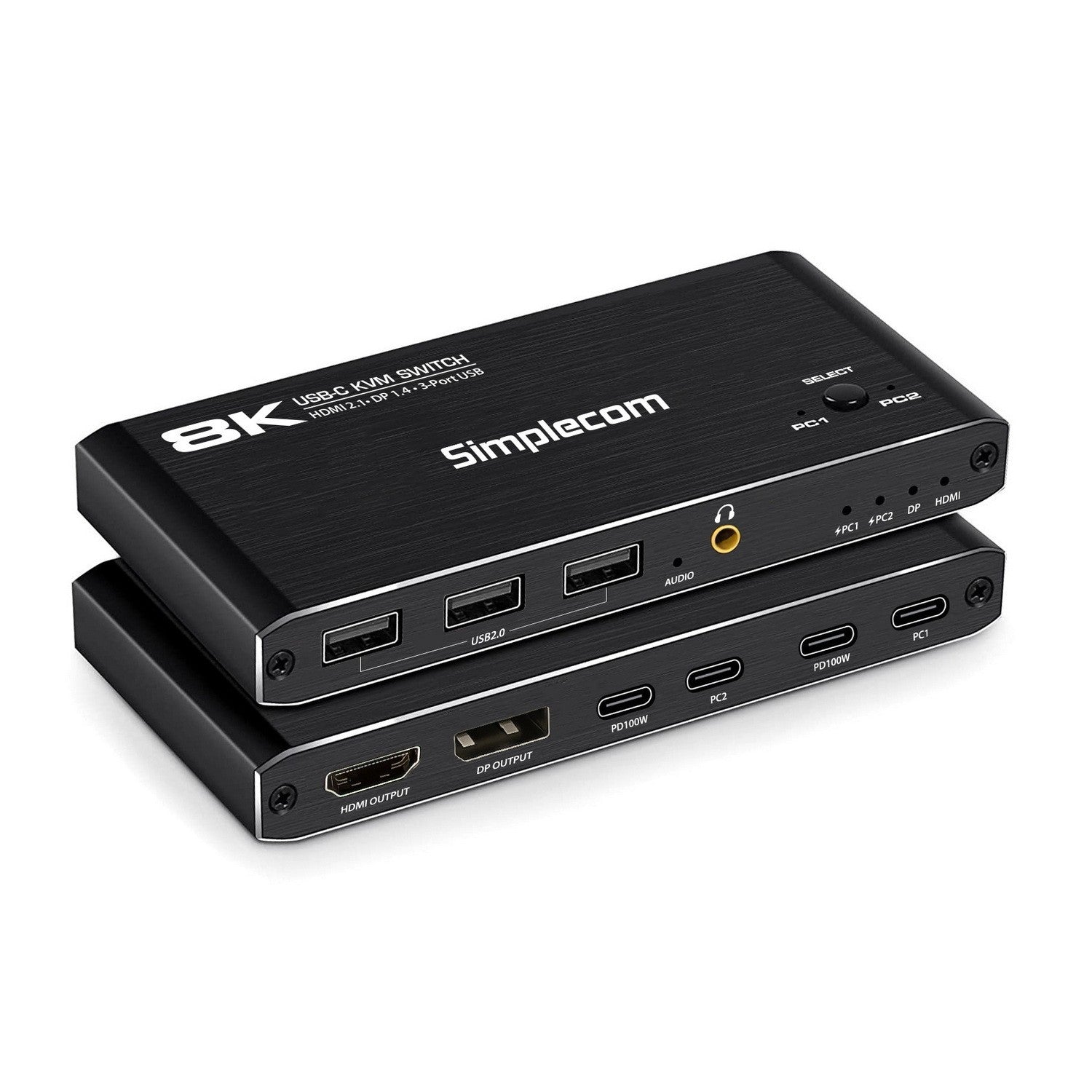

Simplecom KM470 2-Port USB-C KVM Switch 8K Docking Station HDMI 2.1 DP for Laptop Tablet
Simplecom KM470 2-Port USB-C KVM Switch 8K Docking Station HDMI 2.1 DP for Laptop Tablet
Features
- USB-C KVM switch allows two laptops to share external display and USB devices
- Intergraded USB-C docking station, single USB-C cable for Video, Data and PD charging
- With both DisplayPort and HDMI output ports for TV or monitors
- 3-Port USB 2.0 hub for connecting mouse, keyboard, printer and more
- 3.5mm audio jack for connecting headphones or speakers
- Two PD charging ports allow charging for both laptops simultaneously
- HDMI 2.1 and DP 1.4 compliant, support video resolution up to 8K
- Backward compatible with HDMI 2.0 and HDMI 1.4
- Easy to use by pressing the toggle button on the KVM switch
- Self-powered via connected laptop, no external power required
- Plug and play and hot swappable
- Durable aluminium alloy casing, also efficiently dissipate heat
- LED light indicating the active computer and PD charging
Specifications
| Model | KM470 |
|---|---|
| USB Upstream Ports | USB-C x2 (Connect to PC1 and PC2) |
| USB Downstream Ports | USB 2.0 x3 (Connect USB peripherals) |
| PD Charing Port | USB-C x2 (up to 100W on each port) |
| Video Output | HDMI 2.1 x1, DP 1.4 x1 |
| USB Max Bandwidth | HighSpeed 480Mbps |
| HDMI Max Bandwidth | 48Gbps |
| DP Max Bandwidth | 32.4Gbps |
| Video Resolution | 1080p@60/120/165Hz, 4K@60/120/144Hz (DSC), 8K@30/60Hz(DSC) |
| Audio Output | 3.5mm audio jack (sound output only) |
| Operating Temperature | 0 to 50°C |
| Dimension (L x W x H) | 13 x 6.3 x 1.6mm |
| Weight | 109g |
| Operating System Support | Windows, MacOS, Chrome OS |
| Package Contents | |
| 1x USB-C KVM Switch | |
| 2x USB-C to USB-C Cables | |
| System Requirements | |
| Laptop or mobile device with full functional USB-C port that supports DP Alt Mode (DisplayPort Alternate Mode) | |
| Laptop with Thunderbolt 3, Thunderbolt 4, USB4 port | |
| Important Note | |
