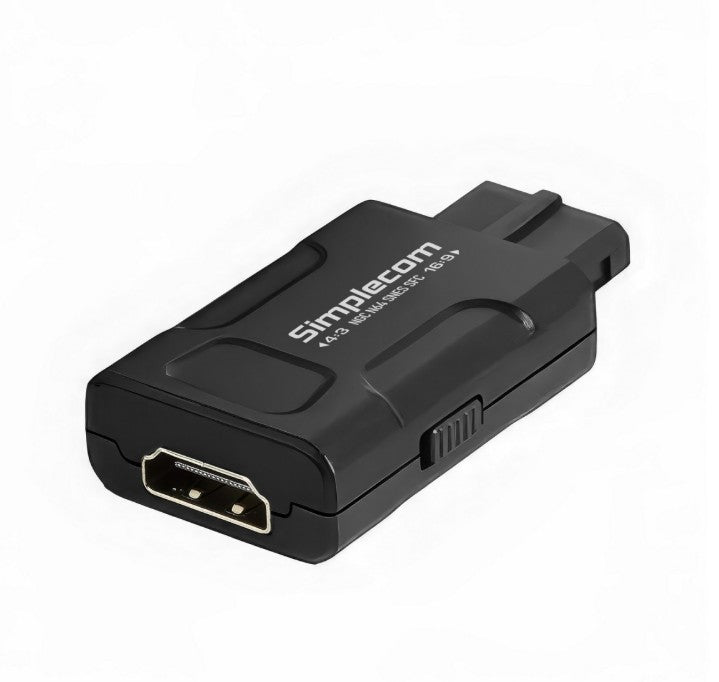

Simplecom CM461v2 HDMI Adapter Composite AV and S-Video to HDMI Converter for Nintendo NGC N64 SNES SFC
Simplecom CM461v2 HDMI Adapter Composite AV and S-Video to HDMI Converter for Nintendo NGC N64 SNES SFC
Bring your classic consoles back to life with this high-quality HDMI converter. Designed for classic systems including N64, GameCube, Super NES, and SFC, it effortlessly converts analog signals into digital HDMI output.
The converter supports both Composite AV and S-Video signals, automatically switching to S-Video for improved picture quality whenever available. It’s compatible with both NTSC and PAL consoles for a hassle-free setup.
With a built-in switch to toggle between 4:3 and 16:9 aspect ratios, you can enjoy games in their original format or in full-screen mode. Compact, lightweight, and completely plug-and-play with no external power required, this converter is easy to set up and use, perfect for reliving your favorite retro titles on modern displays.
Features
- Compatible with N64, GameCube, Super NES, and SFC consoles
- Converts and upscales console analog signal to digital HDMI output
- Supports Composite AV and S-Video signals from the console
- Automatically switches to S-Video mode for enhanced quality when available
- Supports both NTSC and PAL consoles
- Delivers both video and audio through a single HDMI cable
- Easily select between 4:3 and 16:9 aspect ratios with a switch
- Plug and play, no external power required
- Compact and lightweight design, easy to set up
Specifications
| Model | CM461v2 |
|---|---|
| Compatible Consoles | N64 / NGC / SNES / SFC |
| Supported Analog Signals | AV, S-Video |
| Output Interface | HDMI |
| Analog Video Standards | PAL, NTSC |
| HDMI Output Resolution | 720p (16:9), 1080p (4:3) |
| Dimensions | 57 × 29 × 13mm (W×D×H) |
| Weight | 14g |
| Important Notes: | |
| The adapter is powered directly by the console, no external power supply is required. | |
| This HDMI adapter supports only analog video signals (AV, S-Video). RGB signals are not supported. | |
| Not all consoles support S-Video signal. If S-Video signal is not detected, the adapter will default to AV signal. | |
| Supported Console with S-Video output | |
| N64 | All NTSC consoles and most PAL consoles support S-Video output |
| GameCube | All NTSC consoles support S-Video output; PAL consoles do not support S-Video |
| SNES / SFC | All NTSC and PAL consoles support S-Video output, except the cost-reduced smaller size models (SNS-101 and SHVC-101) |
