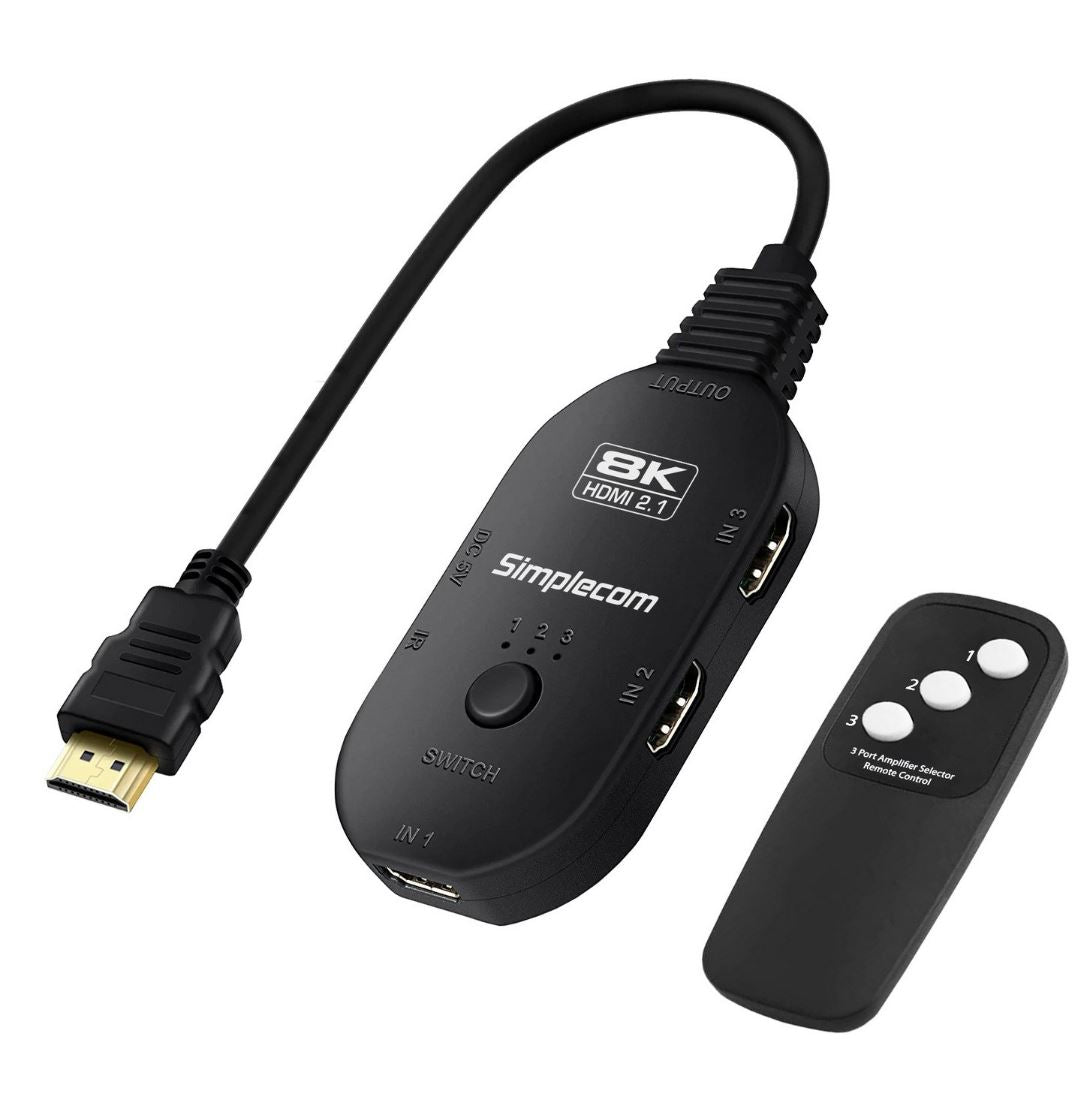

Simplecom CM353 3-Port HDMI 2.1 Switch 3 IN 1 OUT Splitter HDCP 2.3 8K@60Hz
Simplecom CM353 3-Port HDMI 2.1 Switch 3 IN 1 OUT Splitter HDCP 2.3 8K@60Hz
Features
- HDMI 2.1 compliant, backward compatible with previous HDMI versions
- Supports 3 HDMI source devices to share one HDMI port on display
- Easy to use by pressing the toggle button or remote control
- Intergraded HDMI output cable for easy connection to TV or monitor
- HDCP 2.3 compliant, backward compatible with previous HDCP versions
- Supports video resolutions up to 8K@60Hz or 4K@120Hz
- Supports video bandwidth up to 48Gbps
- LED light indicating the active HDMI input port
- Plug and Play, no external power required for standard HDMI devices
Specifications
| Model | CM353 |
|---|---|
| HDMI version | HDMI 2.1, backward compatible |
| HDCP version | HDCP 2.3, backward compatible |
| HDMI Input | 3x HDMI Female |
| HDMI Output | 1x HDMI Male |
| HDMI Max Bandwidth | 48Gbps |
| Resolution Support | 8K, 4K, 1440p, 1080p, 1080i, 720p, 720i, 576p, 576i, 480p |
| Max Refresh Rate | 8K@60Hz, 4K@120Hz, 1080p@240Hz |
| Support Video Colour | 12bit/14bit/16bit/36bit deep colour, RGB 8:8:8 |
| HDR support | Yes |
| Support Audio Format | DTS-HD, Dolby-TrueHD, PCM, LPCM |
| Power Input | USB-C DC 5V (No external power required for standard HDMI devices) |
| Operating Temperature | 0°C to 50°C |
| Dimension (L x W x H) | 121 x 50 x 1.5mm |
| Cable Length | 40cm approx. |
| Weight | 80g |
| Package Contents | |
| 1x 3 Way HDMI Switch | |
| 1x Remote Control | |
| 1x IR Receiver | |
| 1x USB Power cable | |
| Important Note | |
| For 8K@60Hz or 4K@120Hz support, 48Gbps HDMI 2.1 cable is required, cable length is limited to 3M | |
| This device is 3 IN 1 OUT one way only, and can not be used in reverse way | |
