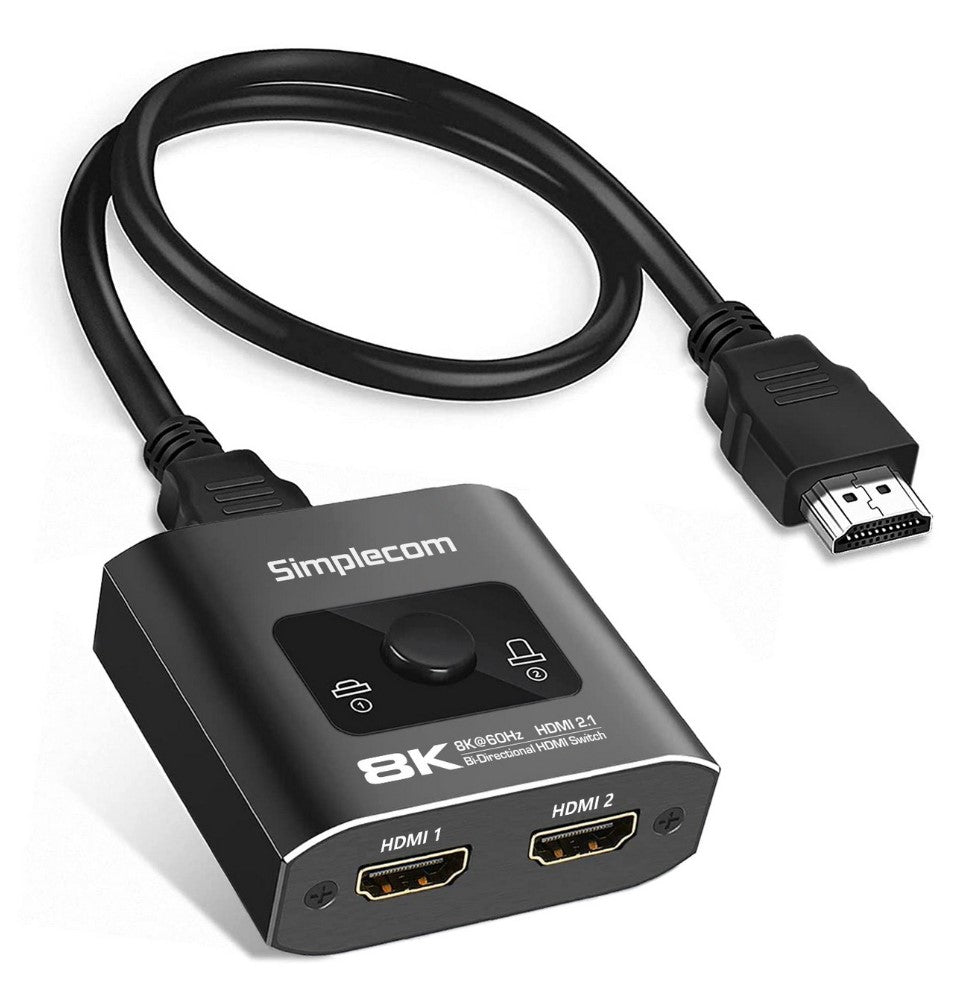

Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K
Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K
Features
- Bi-Directional HDMI 2.1 switch for toggling between 2 HDMI sources or displays
- Quickly switch video sources or displays without having to swap cables
- Durable aluminium alloy casing, also efficiently dissipate heat
- Portable and compact size, easy to install
- HDMI 2.1 compliant, support bandwidth up to 48Gbps
- Support HDMI video resolution up to 8K@60hz
- HDCP 2.3 compliant, wide compatibility with most HDMI source devices
- Powered by HDMI source device, no external power required
Specifications
| Model | CM302v2 |
|---|---|
| HDMI Version | HDMI 2.1 |
| Video Resolution Support | up to 1080@240Hz, 4K@120Hz, 8K@60Hz |
| Audio Format Support | DTS-HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1 |
| HDR Format Support | HDR10 |
| HDCP Version Support | HDCP 2.3 |
| Max Bandwidth | 48Gbps |
| Max cable distance | Input<2M, Output<2M |
| Max Operation Current | 15mA |
| Power Input | USB DC 5V (Backup power only) |
| Operating Temperature | (-15 to +55°C) |
| Dimension (L x W x H) | 53x52x21mm |
| Weight | 45g |
| Package Contents | |
| 1 x Bi-Directional HDMI Switch | |
| 1 x HDMI cable | |
| 1 x User Manual | |
| Important Notes: | |
| The length of the HDMI cable connected to both ends of the switch should not exceed 2 meters. | |
| This is a manual HDMI switch and does not support automatic switching. | |
| Powered by HDMI source device, with USB-C port for backup power if no enough power from HDMI. | |
| Two screens cannot display simultaneously under 1 Input 2 Outputs mode. | |
