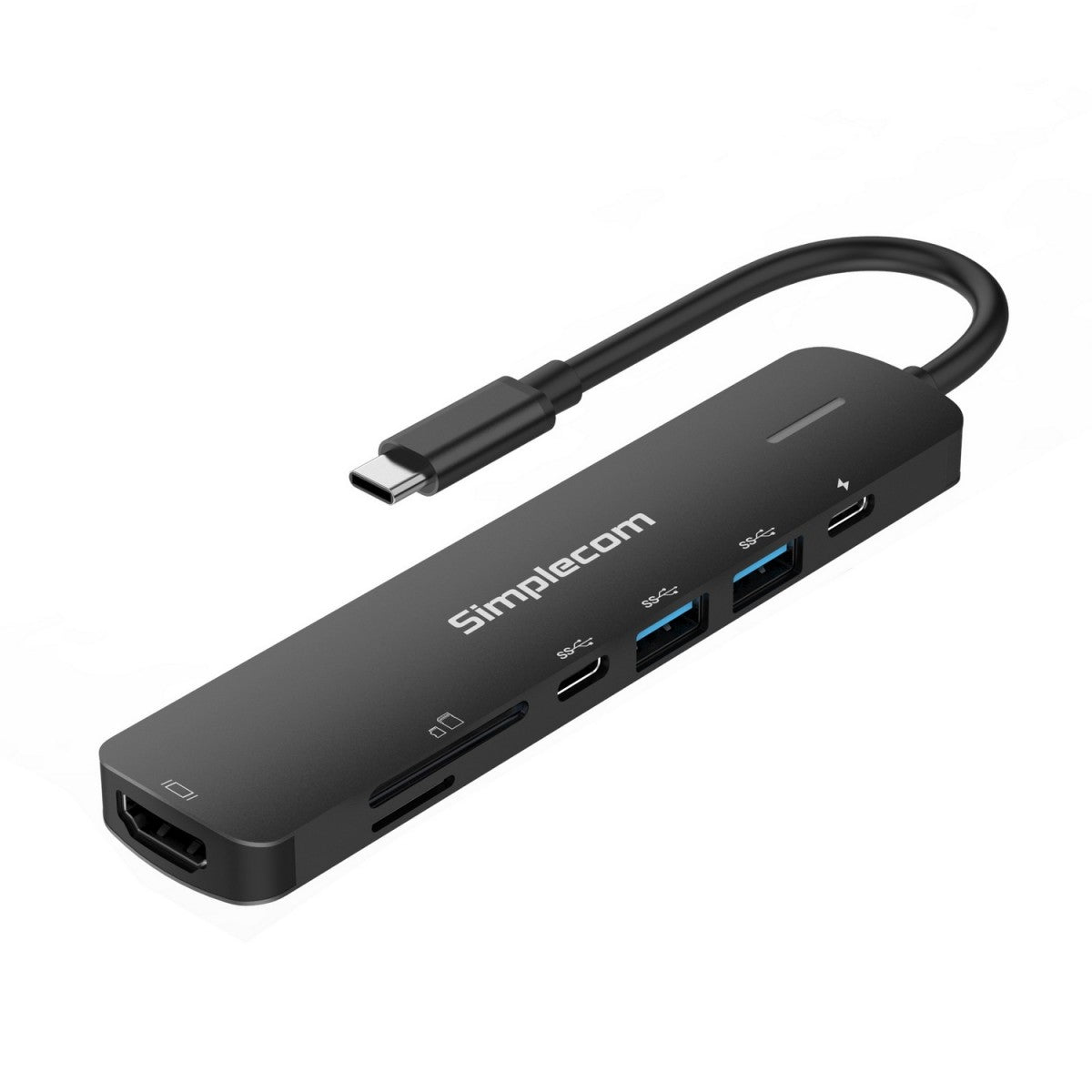

Simplecom CHT570 USB-C SuperSpeed 7-in-1 Multiport Hub Adapter HDMI 2.0 Docking Station
Simplecom CHT570 USB-C SuperSpeed 7-in-1 Multiport Hub Adapter HDMI 2.0 Docking Station
Features
- 7-in-1 USB-C multiport docking station for connectivity expansion to your laptop
- Single USB-C to extra USB-A and USB-C ports, HDMI, Card Reader and PD
- USB ports support SuperSpeed data transfer rate up to 5Gbps
- HDMI 2.0 port supports up to 4K@60Hz resolution in Mirror or Extended mode
- USB-C PD port for charging the laptop with up to 100W of power
- 2-Slot Card reader for SD and microSD with SuperSpeed data transfer rate
- Durable & stylish aluminium alloy housing
- Lightweight and portable, easy to carry along when travelling
- Built-in flexible USB-C Cable
- Plug & play, no driver software required
Specifications
| Host Interface | USB-C |
|---|---|
| USB Hub | 2x USB-A Female (5Gbps), 1x USB-C Female (5Gbps) |
| HDMI Resolutions | Support up to 3840 x 2160p at 60Hz (4K@60Hz) |
| Card Reader | SD and MicroSD (SuperSpeed 5Gbps) |
| PD Charging | 1x USB-C Female (for charging only), up to 100W |
| Operation Temperature | 0 - 45°C |
| Housing Material | Aluminium |
| Dimensions | 13 x 2.9 x 1.1cm |
| Cable Length | 15cm |
| Weight | 50g |
| System Requirements | |
| USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support | |
| Compatible with Thunderbolt USB-C port or USB4 port | |
| Operating system | Windows 10 or above, macOS 10.12 or above, Android, ChromeOS |
| Laptop GPU with DP1.4 supports up to 4K@60Hz, laptop GPU with DP1.2 supports up to 4K@30Hz | |
| Important Note | |
| Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function | |
| 4K@60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile Processors or later) | |
| The USB-C PD port is for PD Charging only, not for data transfer | |
| For more stable connection when using multiple devices, connect a PD power adaptor to the USB-C PD port for extra power | |
