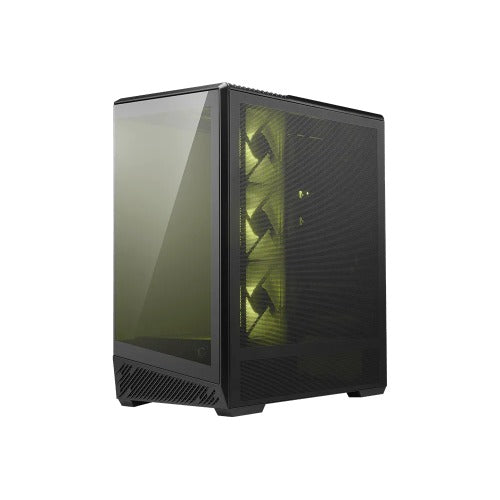

Home MSI MAG PANO 130R PZ -BLACK – ATX/mATX/ITX, 400mm GPU, 165mm CPU, 7 slots, 6×120mm, 360 rad top/side, 2×USB-A, 1×USB-C 20Gbps, 460×232×490mm, 8.37kg
MSI MAG PANO 130R PZ -BLACK – ATX/mATX/ITX, 400mm GPU, 165mm CPU, 7 slots, 6×120mm, 360 rad top/side, 2×USB-A, 1×USB-C 20Gbps, 460×232×490mm, 8.37kg
MSI MAG PANO 130R PZ -BLACK – ATX/mATX/ITX, 400mm GPU, 165mm CPU, 7 slots, 6×120mm, 360 rad top/side, 2×USB-A, 1×USB-C 20Gbps, 460×232×490mm, 8.37kg
MSI

MSI MAG PANO 130R PZ -BLACK – ATX/mATX/ITX, 400mm GPU, 165mm CPU, 7 slots, 6×120mm, 360 rad top/side, 2×USB-A, 1×USB-C 20Gbps, 460×232×490mm, 8.37kg

In stockSKU: CAM-PANO130RPZ-BK
$112.20
$112.20

MSI MAG PANO 130R PZ -BLACK – ATX/mATX/ITX, 400mm GPU, 165mm CPU, 7 slots, 6×120mm, 360 rad top/side, 2×USB-A, 1×USB-C 20Gbps, 460×232×490mm, 8.37kg

Features

  • Support Back Back-Connect ATX Motherboard
  • Compatible with ATX PROJECT ZERO motherboards, allowing easy installation and streamlined cable management by routing cables through the rear.
  • Upgrade Airflow Layout
  • This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance.
  • Rotatable PCIe Bracket
  • One bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.
  • Dust Filter
  • Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup
  • Pre build with Reverse Blades Fan
  • installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.

Specifications

Product Name MAG PANO 130R PZ / BLACK
Case Form Factor Mid-Tower
Motherboard Form Factor Support Regular:
ATX / Micro-ATX / Mini-ITX
Back-connect:
ATX / Micro-ATX
I/O Ports 2 x USB 5Gbps (Type-A)
1 x USB 20Gbps (Type-C)
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button
Drive Mount Support Up to 3 x 2.5' SSD
Up to 2 x 3.5' HDD
(Maximum of 3 drives can be mounted at once, depending on configuration)
Expansion Slots 7
Maximum GPU Length 400 mm / 15.75 inches
Maximum CPU Cooler Height 165 mm / 6.50 inches
Power Supply Support ATX
Maximum PSU Length 180 mm / 7.09 inches
Fan Size Support Top: 3 x 120 mm / 2 x 140 mm
Front N/A
Rear 1 x 120 mm
Side 3 x 120 mm
Bottom 3 x 120 mm (Above the power shroud)
Pre-installed Fan Type Rear: 1 x 120 mm ARGB Fan
Side 3 x 120 mm ARGB Fan (Reverse Blade Fan)
Radiator Size Support Top: 120 / 140 / 240 / 280 / 360 mm
Front N/A
Rear 120 mm
Side 120 / 240 / 360 mm
Bottom N/A
Dimensions (DxWxH) 460 x 232 x 490 mm / 18.11 x 9.25 x
19.29 inches
Net Weight Black: 8.37 kg / 18.45 lbs
Gross Weight Black: 10 kg / 22.04 lbs
