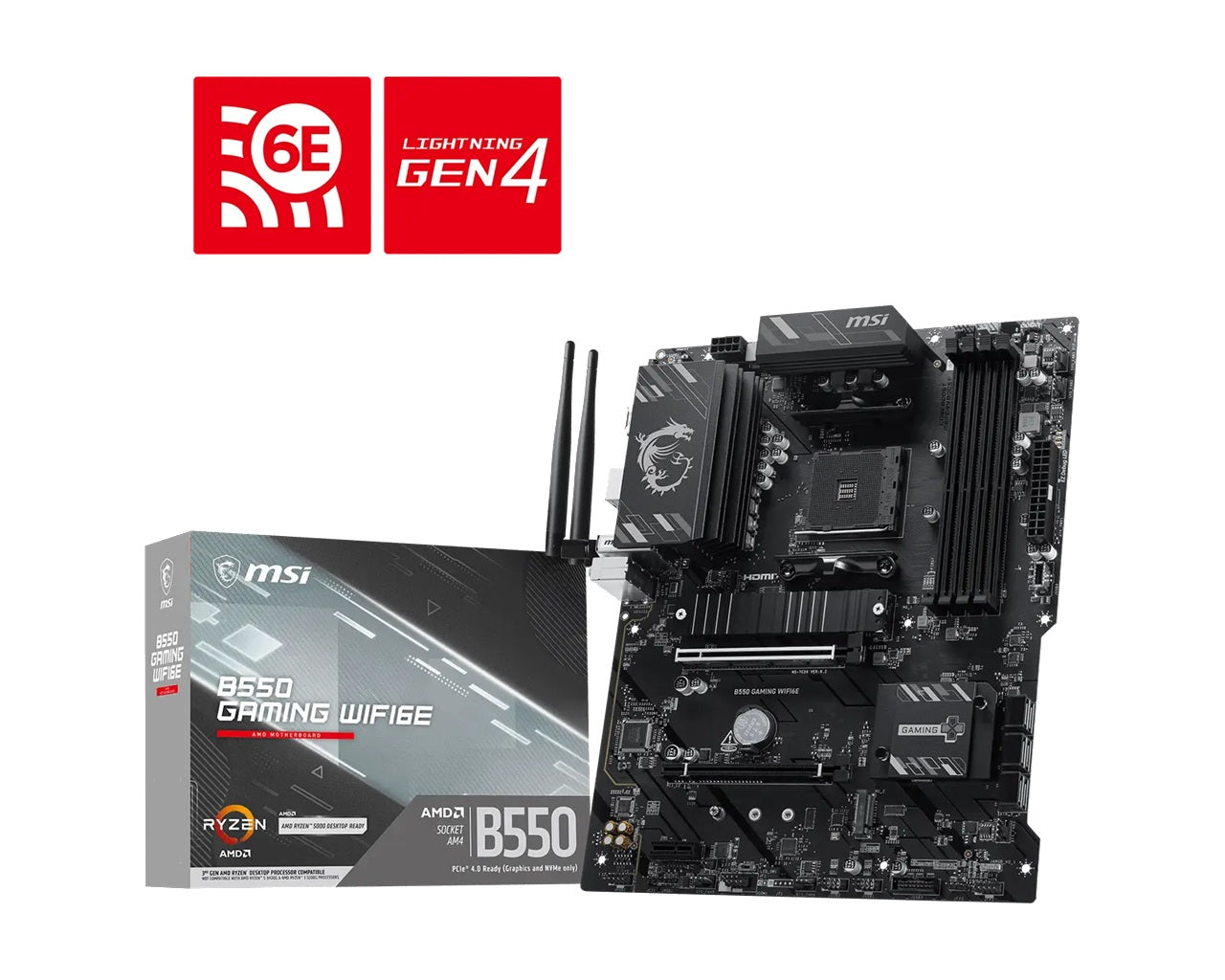

MSI B550 GAMING WIFI6E, AMD B550, AM4, Ryzen 5000/3000, DDR4 128GB, PCIe 4.0, 2x M.2, Wi-Fi 6E, 1Gb LAN, USB 10Gbps, ATX, 4866+MHz OC, RGB, 7.1 Audio
MSI
MSI B550 GAMING WIFI6E, AMD B550, AM4, Ryzen 5000/3000, DDR4 128GB, PCIe 4.0, 2x M.2, Wi-Fi 6E, 1Gb LAN, USB 10Gbps, ATX, 4866+MHz OC, RGB, 7.1 Audio
Regular price
$237.60
Regular price
Sale price
$237.60
Unit price
per
MSI B550 GAMING WIFI6E
The B550 GAMING WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring an 1G LAN, Wi-Fi and PCIe 4.0 solution, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.
Specifications
| Chipset AMD B550 | |
| CPU | |
| Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors | |
| Socket AM4 | |
| Memory | |
| 4x DDR4, Maximum Memory Capacity 128GB | |
| Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE | |
| Max. overclocking frequency: | |
| 1DPC 1R Max speed up to 4800+ MHz | |
| 1DPC 2R Max speed up to 3866+ MHz | |
| 2DPC 1R Max speed up to 4000+ MHz | |
| 2DPC 2R Max speed up to 3600+ MHz | |
| Dual channel memory architecture | |
| Supports non-ECC UDIMM memory | |
| Supports ECC UDIMM memory (non-ECC mode) | |
| Supports un-buffered memory | |
| Onboard Graphics | |
| 1x HDMI™ | |
| Support HDMI™ 1.4, maximum resolution of 4K 30Hz* | |
| 1x DisplayPort | |
| Support DisplayPort 1.2, maximum resolution of 4K 60Hz* | |
| Slot | |
| 2x PCI-E x16 slot | |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) | |
| PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| Audio | |
| Realtek® ALC897 | |
| 7.1-Channel High Definition Audio | |
| Storage | |
| 2x M.2 | |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices | |
| 6x SATA 6G | |
| USB | |
| 4x USB 2.0 (Rear) | |
| 4x USB 2.0 (Front) | |
| 2x USB 5Gbps Type A (Rear) | |
| 2x USB 5Gbps Type A (Front) | |
| 1x USB 5Gbps Type C (Front) | |
| 1x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Rear) | |
| LAN | |
| Realtek® 8111H 1G LAN | |
| Internal IO | |
| 1x Power Connector(ATX_PWR) | |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Combo Fan (Pump_Sys Fan) | |
| 6x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 5Gbps Type C ports | |
| WIRELESS LAN & BLUETOOTH | |
| Wi-Fi 6E Solution | |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Dual-band 1T1R mode | |
| Supports MU-MIMO RX | |
| Supports 2.4GHz/ 5GHz/ 6GHz* frequency band | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth® 5.3** | |
| LED FEATURE | |
| 4x EZ Debug LED | |
| OPERATING SYSTEM | |
| Support for Windows® 11 64-bit | |
| PCB Info | |
| ATX | |
| 243.84mmx304.8mm |
