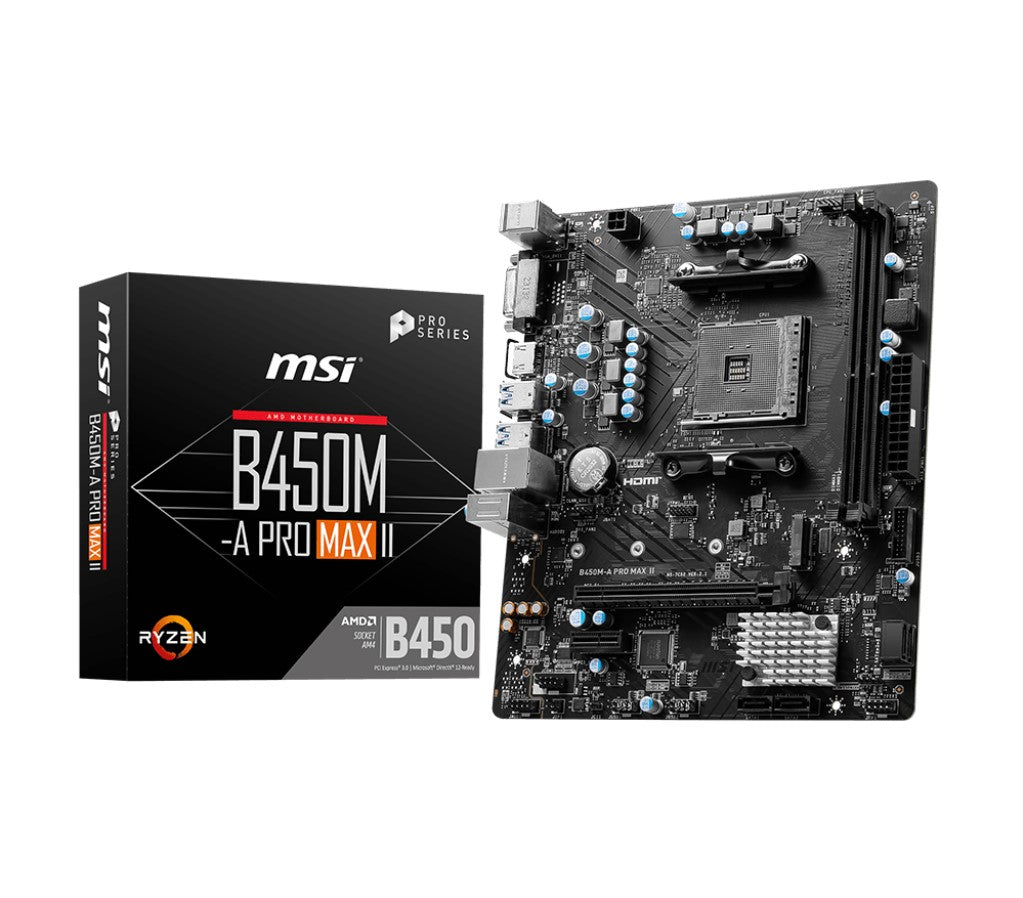

MSI B450M-A PRO MAX II AMD M-ATX Motherboard - AM4 Ryzen, 2xDDR4-max64GBCapacity,1xPCIe x16slot, 4xSATA 6Gb, 6xUSB3.0, 6xUSB2.0, DVI-D HDMI, 2.5G LAN
MSI B450M-A PRO MAX II AMD M-ATX Motherboard - AM4 Ryzen, 2xDDR4-64GBCapacity,1xPCIe x16slot, 4xSATA 6Gb, 6xUSB3.0, 6xUSB2.0, DVI-D HDMI, 2.5G LAN
MSI AMD B450M-A PRO MAX AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series desktop processors and Athlon™ with Radeon™ Vega Graphics desktop processors
Supports DDR4 Memory, up to 4133 (OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
Audio Boost: Reward your ears with studio grade sound quality.
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Specifications
| Model Name B450M-A PRO MAX II | |
| CPU Support | |
| Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 GSeries, 3000 Series, 3000 G-Series, 2000 Series, 2000 GSeries and 1000 Series desktop processors and Athlon™ with Radeon™ Vega Graphics desktop processors | |
| CPU Socket | |
| Socket AM4 | |
| Chipset | |
| AMD B450 Chipset | |
| Expansion Slots | |
| 1x PCIe 3.0 x16 slot | |
| 1x PCIe 2.0 x1 slot | |
| Display Interface | |
| Support 4K@60Hz as specified in HDMI™ 2.0b, DVI-D | |
| - Requires Processor Graphics | |
| Memory Support | |
| 2 DIMMs, | |
| Dual Channel DDR4-4133+MHz(OC) | |
| Storage | |
| 1x M.2 Gen3 x4 32Gbps slot | |
| 4x SATA 6Gbps ports | |
| USB ports | |
| 6x USB 3.2 Gen 1 5Gbps (6 Type-A) | |
| 6x USB 2.0 | |
| LAN | |
| Realtek® 8125BG 2.5G LAN | |
| Audio | |
| 8-Channel (7.1) HD Audio with Audio Boost |
