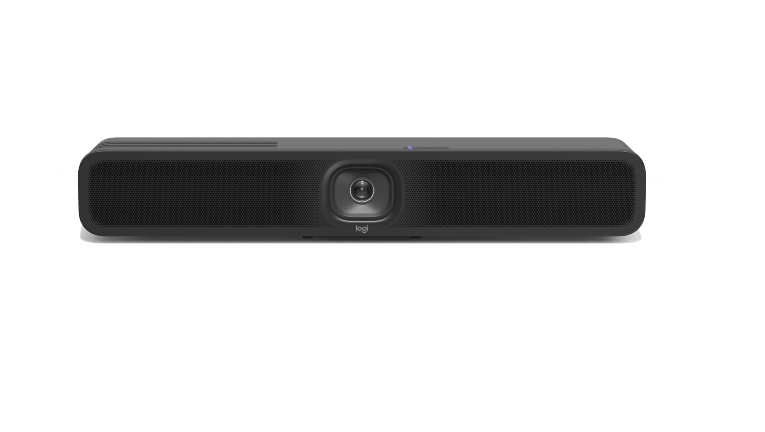

Logitech MeetUp 2 4K All-In-One Conference camera Display Resolution: 1080p Pickup Range: Up to 7m
Logitech MeetUp 2 - All-In-One Conference camera
Upgrade your small meeting rooms with MeetUp 2, a USB conference camera for small spaces powered by AI features that simplify the meeting experience for both employees and IT.
Specs & Details
Dimensions
Height: 73.3 mm
Width: 469.2 mm
Depth: 73 mm
Weight: 1.8 kg
Built-in Components
6 DMIC microphone array
Digital PTZ camera
1 full range ported speaker
Cable management & retention system
Multi-mount
Logitech CollabOS platform
Logitech RightSight 2
Logitech RightSound 2
Specifications
| Enclosure | All-in-one enclosure |
|---|---|
| Device Management | Logitech Sync |
| Displays Supported | BYOD mode: 1; Dedicated computer mode: computer/application dependent |
| Display Resolution | 1080p |
| Network Protocol Support | IPv4, IPv6 |
| Proxy Support | IP based Proxy, FQDN based Proxy, Proxy using PAC file |
| Camera | |
| Digital pan | ±48° at 4x zoom |
| Digital Tilt | ±32° at 4x zoom |
| Zoom | 4X HD digital zoom |
| Diagonal Field of View | 120° |
| Horizontal Field of View | 113° |
| Vertical Field of View | 80° |
| Resolution | 4K |
| Speakers | |
| Driver | 55 mm with bass reflex enclosure and patented suspension design |
| Sensitivity | 83 dB SPL @1W +/-2dB @ 1 meter |
| Rated Power | 8W THD at 1W, 1kHz : <2% |
| Speaker Sampling Rate | 48KHz |
| Impedance | 4 Ohms |
| Microphones | |
| Frequency Response | 90Hz – 16kHz |
| Sensitivity | -36dBFS +/-1 dB @ 1Pa |
| Microphone data rate output | 48 kHz |
| Pickup Range | Up to 7m |
| Beamforming Elements | Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams |
| Audio processing | AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector) |
| Noise suppression | AI based de-noising algorithm |
| Interfaces | |
| HDMI Out | 1 |
| HDMI In | 1 |
| USB | 1 x Type C USB 3.1 |
| Network | 10/100/1G Ethernet |
| WiFi | 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth® Low Energy |
| Power and Cables | |
| Power supply | Auto-sensing |
| Operating Voltage/Power | 100-240V, 19V, 2.1A |
| Power Supply Dimensions | 114 x 47 mm x 32.3 mm |
| DC Cable | 3 m |
| USB C to USB C 3.0 Cable | 3 m |
| Environmental | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -25-70°C |
| Humidity | 10 to 90% |
| Security | |
| File Based Encryption | AES-128 |
| Data Encryption | Symmetric Keys, PKI |
| Device Identity | Protected by device attestation |
| Device Access | Authenticated using API |
| Key Protection | Arm TrustZone, RPMP |
| Physical Security | Kensington security slot |
| Warranty Information | |
| 2-Year Limited Hardware Warranty | |
| 1-Year and 3-Year Extended Warranty available for purchase | |
| Windows 10 and higher | |
| macOS | two most recent versions |
| Network Connection | wired or wireless |
