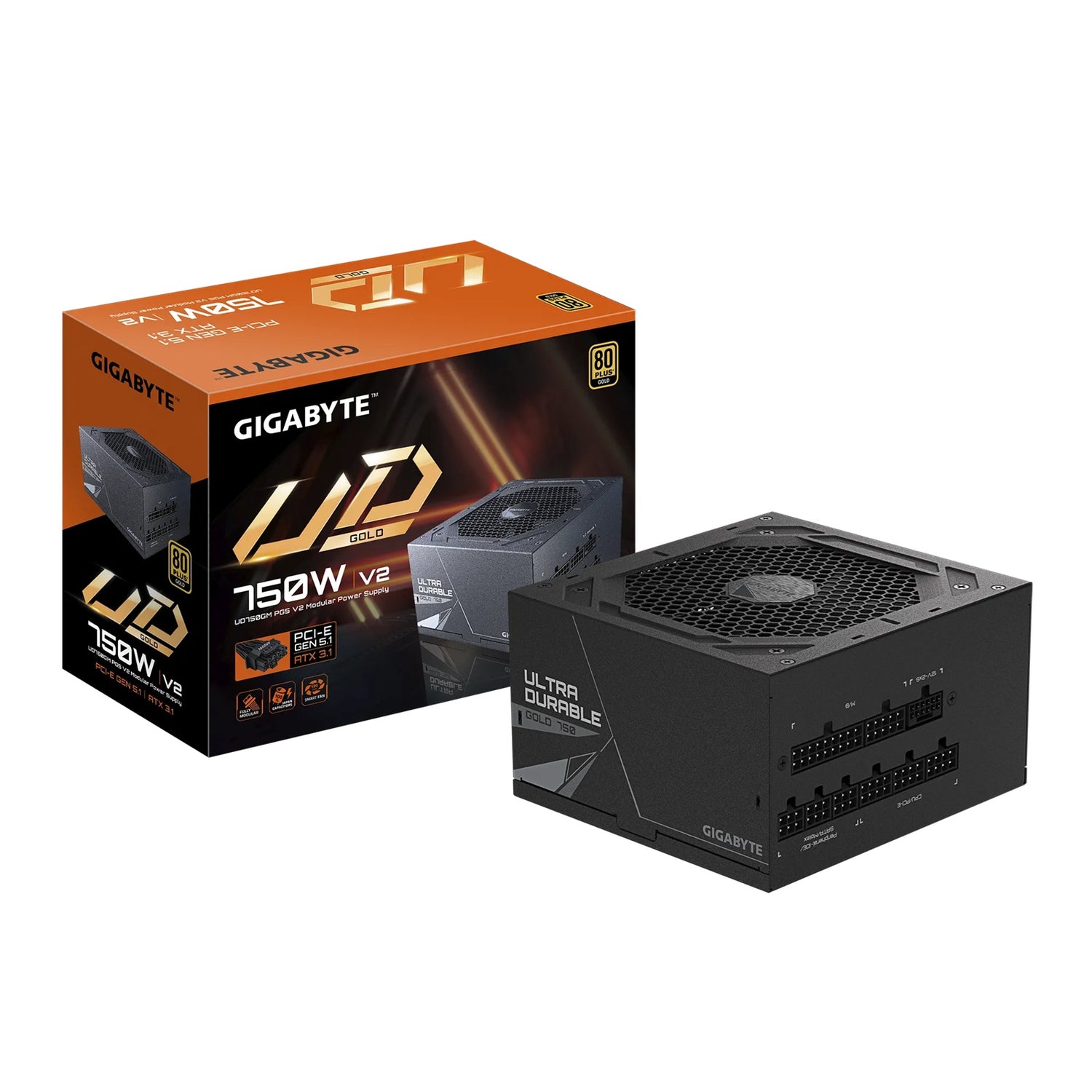

Gigabyte UD750GM PG5 V2, 750W ATX PSU Power Supply 80+ Gold >90% Black Embossed Cables 100-240 Vac >100K Hrs ( )
Gigabyte
Gigabyte UD750GM PG5 V2, 750W ATX PSU Power Supply 80+ Gold >90% Black Embossed Cables 100-240 Vac >100K Hrs ( )
Regular price
$143.90
Regular price
Sale price
$143.90
Unit price
per
Gigabyte UD750GM PG5 V2, 750W ATX PSU Power Supply 80+ Gold >90% Black Embossed Cables 100-240 Vac >100K Hrs (NEW)
Specifications
| Model | |
| GP-UD750GM PG5 V2 | |
| Type | |
| Intel Form Factor ATX 12V v3.1 | |
| PFC | |
| Active PFC (>0.9 typical) | |
| Input Voltage | |
| 100-240 Vac (full range) | |
| Input Current | |
| 15-6.5A | |
| Input Frequency | |
| 60-50 Hz | |
| Output Capacity | |
| 750W | |
| Dimension | |
| 150 x 140 x 86mm | |
| Fan Type | |
| 120mm Hydraulic Bearing(HYB)fan | |
| 80 PLUS | |
| Gold | |
| Efficiency | |
| 90% at typical load | |
| MTBF | |
| >100,000 hours | |
| Protection | |
| OVP/OPP/SCP/UVP/OCP/OTP | |
| Power Good Signal | |
| 100-150ms | |
| Hold Up Time | |
| >16ms | |
| Cable Type | |
| Embossed, All black | |
| Connectors | |
| ATX/MB 20+4 Pin x 1 | 610mm*1 |
|---|---|
| CPU/EPS 4+4 Pin x 2 | 650mm+200mm*1 |
| PCI-e 6+2 Pin x 4 | 600mm+150mm*2 |
| PCI-e 12+4 Pin x 1 | 700mm*1 |
| SATA x 8 | 600mm+150mm+150mm+150mm*2 |
| 4 Pin Peripheral x 3+4-Pin Floppy x 1 | 500mm+150mm+150mm+150mm*1 |
