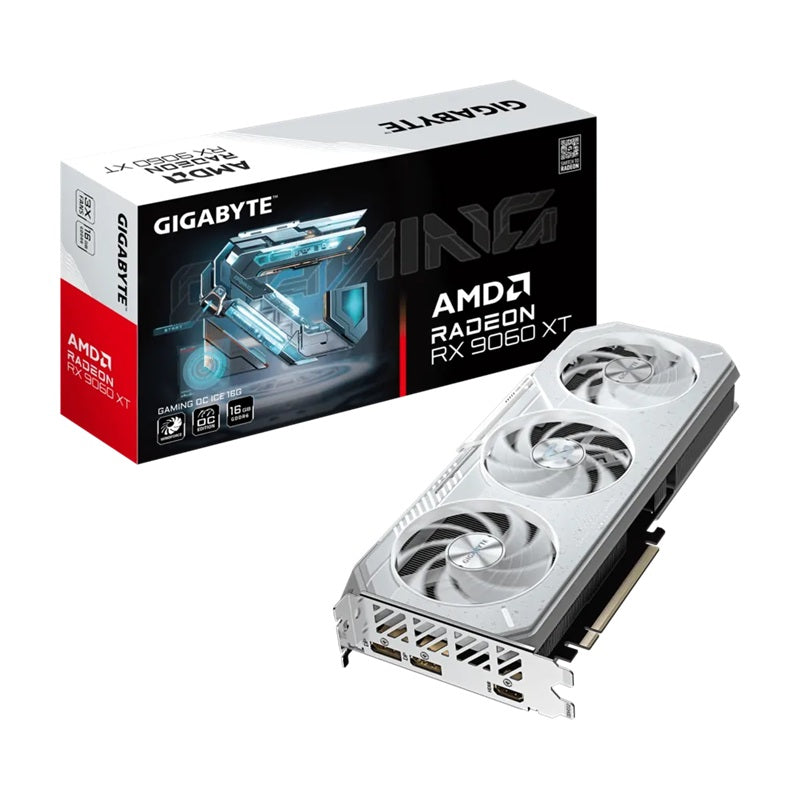

Gigabyte Radeon RX 9060 XT GAMING OC ICE 16G, GDDR6, 3320MHz boost, 2780MHz, 2048 cores, PCIe 5.0, 281mm, 450W, 2x DP 2.1a, HDMI 2.1b
Gigabyte
Gigabyte Radeon RX 9060 XT GAMING OC ICE 16G, GDDR6, 3320MHz boost, 2780MHz, 2048 cores, PCIe 5.0, 281mm, 450W, 2x DP 2.1a, HDMI 2.1b
Regular price
$1,026.95
Regular price
Sale price
$1,026.95
Unit price
per
Gigabyte Radeon RX 9060 XT GAMING OC ICE 16G, GDDR6, 3320MHz boost, 2780MHz, 2048 cores, PCIe 5.0, 281mm, 450W, 2x DP 2.1a, HDMI 2.1b
Specifications
| Graphics Processing Radeon RX 9060 XT | |
| Core Clock Boost Clock* | up to 3320 MHz (Reference card: 3130 MHz) |
|---|---|
| Game Clock* | up to 2780 MHz (Reference card: 2530 MHz) |
| Stream Processors 2048 | |
| Memory Clock 20 Gbps | |
| Memory Size 16GB | |
| Memory Type GDDR6 | |
| Memory Bus 128 bit | |
| Card Bus PCI-E 5.0 | |
| Digital max resolution 7680 x 4320 | |
| Multi-view 3 | |
| Card size L=281 W=118 H=40 mm | |
| PCB Form ATX | |
| DirectX DirectX 12 API | |
| OpenGL OpenGL 4.6 | |
| Recommended PSU 450W | |
| Power Connectors 8 pin*1 | |
| Output DisplayPort 2.1a x2 | |
| HDMI 2.1b x1 | |
| Accessories VGA manual | |
| Note | |
| * “Boost Clock' is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to | thermal conditions and variation in applications and workloads. GD-151 |
| * “Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147 | |
