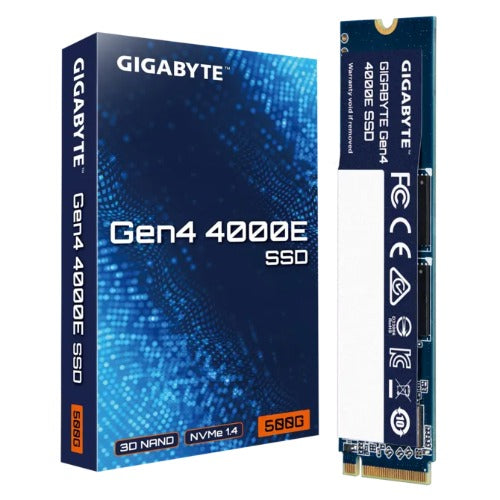

GIGABYTE Gen4 4000E 500GB NVMe PCIe 4.0 x4 M.2 2280 SSD, 3600MB/s Read, 3000MB/s Write, 1.5M Hours MTBF, 3-Year Warranty
Gigabyte
GIGABYTE Gen4 4000E 500GB NVMe PCIe 4.0 x4 M.2 2280 SSD, 3600MB/s Read, 3000MB/s Write, 1.5M Hours MTBF, 3-Year Warranty
Regular price
$177.95
Regular price
Sale price
$177.95
Unit price
per
GIGABYTE Gen4 4000E 500GB NVMe PCIe 4.0 x4 M.2 2280 SSD, 3600MB/s Read, 3000MB/s Write, 1.5M Hours MTBF, 3-Year Warranty
Specifications
| Interface | |
| PCI Express 4.0x4, NVMe 1.4 | |
| Form Factor | |
| M.2 2280 | |
| Total Capacity | |
| 500GB | |
| External DDR Cache | |
| N/A | |
| Sequential Read speed | |
| Up to 3600 MB/s | |
| Sequential Write speed | |
| Up to 3000 MB/s | |
| Dimension | |
| 22 x 2.3 x 80 mm | |
| Mean time between failure (MTBF) | |
| 1.5 million hours | |
| Max. Operating Power | |
| Read | 4300mW |
|---|---|
| Write | 4400mW |
| Power Consumption (Idle, PS3) | |
| 40mW | |
| Power Consumption(PS4, L1.2) | |
| 5mW | |
| Temperature (Operating) | |
| 0°C to 70°C | |
| Temperature (Storage) | |
| -40°C to 85°C | |
Warranty
- 1. Limited 3 years or 300TBW.
- 2. Limited warranty based on 3 years or 300TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
- *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
- 3. When the usage of an NVME SSD as indicated by the ''Percentage Used'' (SMART ID: 05) in SMART page of ''GIGABYTE SSD toolbox'' reaches 100 means out of warranty. (A new unused product will show the number of 0)
- Note
- Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
- Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
- Speeds based on internal testing. Actual performance may vary.
- 1GB = 1 billion bytes. Actual useable capacity may vary.
