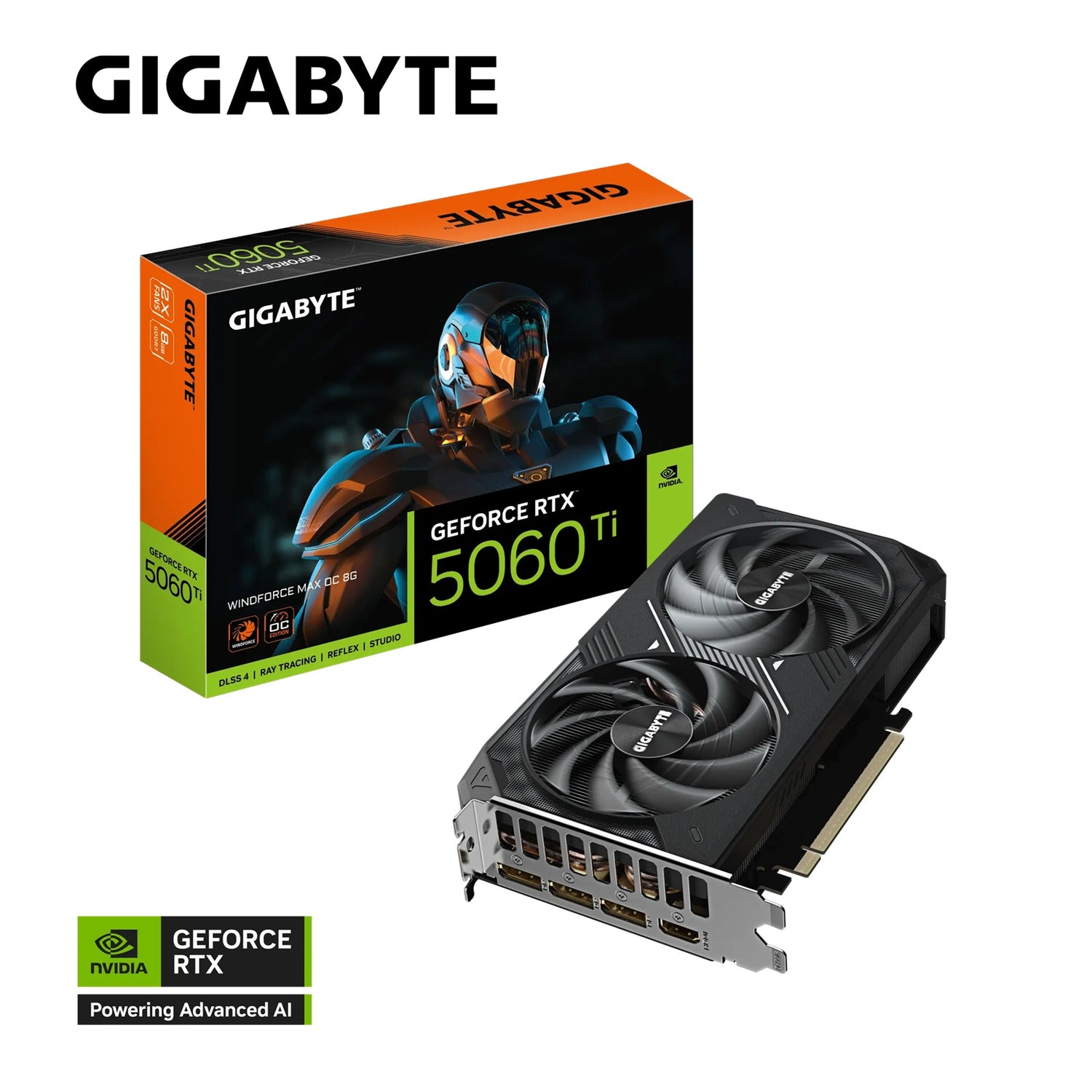

Home Gigabyte GeForce RTX™ 5060 Ti WINDFORCE MAX OC 8G, 2587 MHz, CUDA 4608, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1
Gigabyte GeForce RTX™ 5060 Ti WINDFORCE MAX OC 8G, 2587 MHz, CUDA 4608, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1
Gigabyte GeForce RTX™ 5060 Ti WINDFORCE MAX OC 8G, 2587 MHz, CUDA 4608, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1
Gigabyte

Gigabyte GeForce RTX™ 5060 Ti WINDFORCE MAX OC 8G, 2587 MHz, CUDA 4608, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1

In stockSKU: VCG-N506TWF2MAXOC-8GD
$1,084.95
$1,084.95

Gigabyte GeForce RTX™ 5060 Ti WINDFORCE OC 8G, 2587 MHz, CUDA 4608, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1

Features

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX™ 5060 Ti
  • Integrated with 8GB GDDR7 128bit memory interface
  • WINDFORCE cooling system
  • Hawk fan
  • Server-grade Thermal conductive gel
  • Reinforced structure
BrandGigabyte
Manufacturer part numberGV-N506TWF2MAX OC-8GD
Warranty3 years
Graphics ProcessingGeForce RTX™ 5060 Ti
Core Clock2587 MHz (Reference card :2572 MHz)
CUDA® Cores4608
Memory Clock28 Gbps
Memory Size8 GB
Memory TypeGDDR7
Memory Bus128 bit
Card BusPCI-E 5.0
Digital max resolution7680x4320
Multi-view4
Card sizeL=208 W=120 H=40 mm
PCB FormATX
DirectXDirectX 12 API
OpenGL4.6
Recommended PSU650W
Power Connectors8 Pin*1
OutputDisplayPort 2.1b *3
HDMI 2.1b *1
AccessoriesQuick guide
