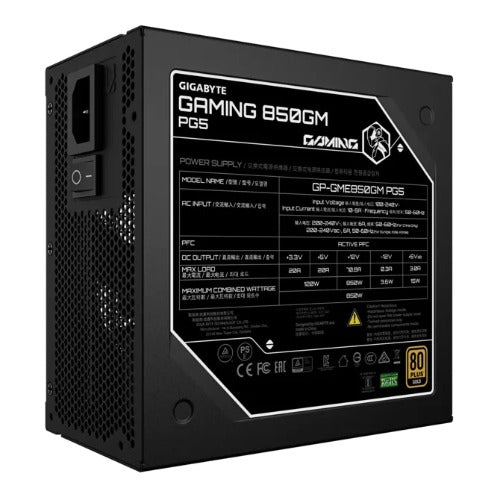

Home GIGABYTE GAMING 850GM PG5 850W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF FM
GIGABYTE GAMING 850GM PG5 850W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF FM
GIGABYTE GAMING 850GM PG5 850W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF FM
Gigabyte

GIGABYTE GAMING 850GM PG5 850W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF FM

In stockSKU: CFGP-GME850GMPG5
$195.35
$195.35

GIGABYTE GAMING 850GM PG5 850W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF FM
Protections
OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP

General
BrandGigabyte
Manufacturer part numberGP-GME850GM PG5/PSU
Warranty3 years
Specifications
ModelGP-GME850GM PG5
TypeIntel Form Factor ATX 12V v3.1
PFCActive PFC (>0.9 typical)
Input Voltage100-240 Vac
Input Current10-5A
Input Frequency50-60 Hz
Output Capacity850W
Dimensions150 x 150 x 86mm
Fan Type135mm FDB Fan
80 PLUSGold
Efficiency90% at typical load
MTBF>100,000 hours
Power Good Signal100-150ms
Hold Up Time>17ms(80% load)
Cable TypeEmbossed, All black
Connectors
ATX/MB 20+4 Pin x 1610mm*1
CPU/EPS 4+4 Pin x 2600mm*2
PCI-e 16 Pin x 1700mm*1
PCI-e 6+2 Pin x 4600mm+150mm*2
SATA x 8600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4500mm+150mm+150mm+150mm*1
