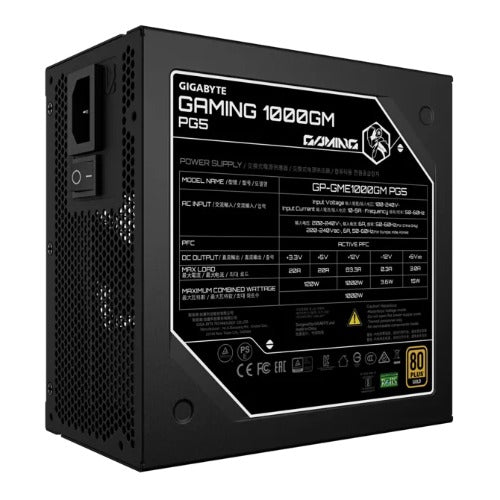

Home GIGABYTE GAMING 1000GM PG5 1000W 80+ Gold ATX 3.1 PSU PCIe 5.0 16pin full modular 135mm fan OVP OPP SCP UVP OCP OTP 8SATA 4PCIe 2EPS 100,000h MTBF
GIGABYTE GAMING 1000GM PG5 1000W 80+ Gold ATX 3.1 PSU PCIe 5.0 16pin full modular 135mm fan OVP OPP SCP UVP OCP OTP 8SATA 4PCIe 2EPS 100,000h MTBF
GIGABYTE GAMING 1000GM PG5 1000W 80+ Gold ATX 3.1 PSU PCIe 5.0 16pin full modular 135mm fan OVP OPP SCP UVP OCP OTP 8SATA 4PCIe 2EPS 100,000h MTBF
Gigabyte

GIGABYTE GAMING 1000GM PG5 1000W 80+ Gold ATX 3.1 PSU PCIe 5.0 16pin full modular 135mm fan OVP OPP SCP UVP OCP OTP 8SATA 4PCIe 2EPS 100,000h MTBF

In stockSKU: CFGP-GME1000GMPG5
$248.15
$248.15

GIGABYTE GAMING 1000GM PG5 1000W 80+ Gold ATX 3.1 PSU PCIe 5.0 16pin full modular 135mm fan OVP OPP SCP UVP OCP OTP 8SATA 4PCIe 2EPS 100,00h MTBF
Protections
OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP

General
BrandGigabyte
Manufacturer part numberGP-GME1000GM PG5/PSU
Warranty3 years
Specifications
ModelGP-GME1000GM PG5
TypeIntel Form Factor ATX 12V v3.1
PFCActive PFC (>0.9 typical)
Input Voltage100-240 Vac (full range)
Input Current
12-6A
Input Frequency60-50 Hz
Output Capacity1000W
Dimensions150 x 150 x 86mm
Fan Type135mm FDB Fan
80 PLUSGold
Efficiency90% at typical load
MTBF>100,000 hours
Power Good Signal100-150ms
Hold Up Time>17ms (80% load)
Cable TypeEmbossed, All black
Connectors
ATX/MB 20+4 Pin x 1610mm*1
CPU/EPS 4+4 Pin x 2600mm*2
PCI-e 16 Pin x 1700mm*1
PCI-e 6+2 Pin x 4600mm+150mm*2
SATA x 8600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4500mm+150mm+150mm+150mm*1
