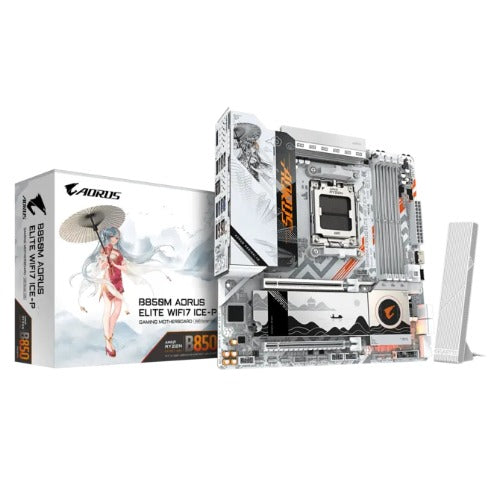

Gigabyte B850M A ELT WF7 ICE-P
Gigabyte
Gigabyte B850M A ELT WF7 ICE-P
Regular price
$382.80
Regular price
Sale price
$382.80
Unit price
per
Gigabyte B850M A ELT WF7 ICE-P, special order to CC only
Specifications
| CPU | |
| AMD Socket AM5 | |
| Chipset | |
| AMD B850 | |
| Memory | |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Onboard Graphics | |
| Integrated Graphics Processor with AMD Radeon™ Graphics | |
| Audio | |
| Realtek® ALC1220 CODEC | |
| LAN | |
| Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Storage Interface | |
| 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key | |
| USB | |
| CPU: | |
| - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support | |
| - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| CPU+USB 2.0 Hub: | |
| - 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset+USB 3.2 Gen 1 Hub: | |
| - 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset: | |
| - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header | |
| - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) | |
| - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| I/O Controller | |
| iTE® I/O Controller Chip | |
| BIOS | |
| 1 x 256 Mbit flash | |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Operating System | |
| Support for Windows 11 64-bit | |
| Form Factor | |
| Micro ATX Form Factor; 24.4cm x 24.4cm |
