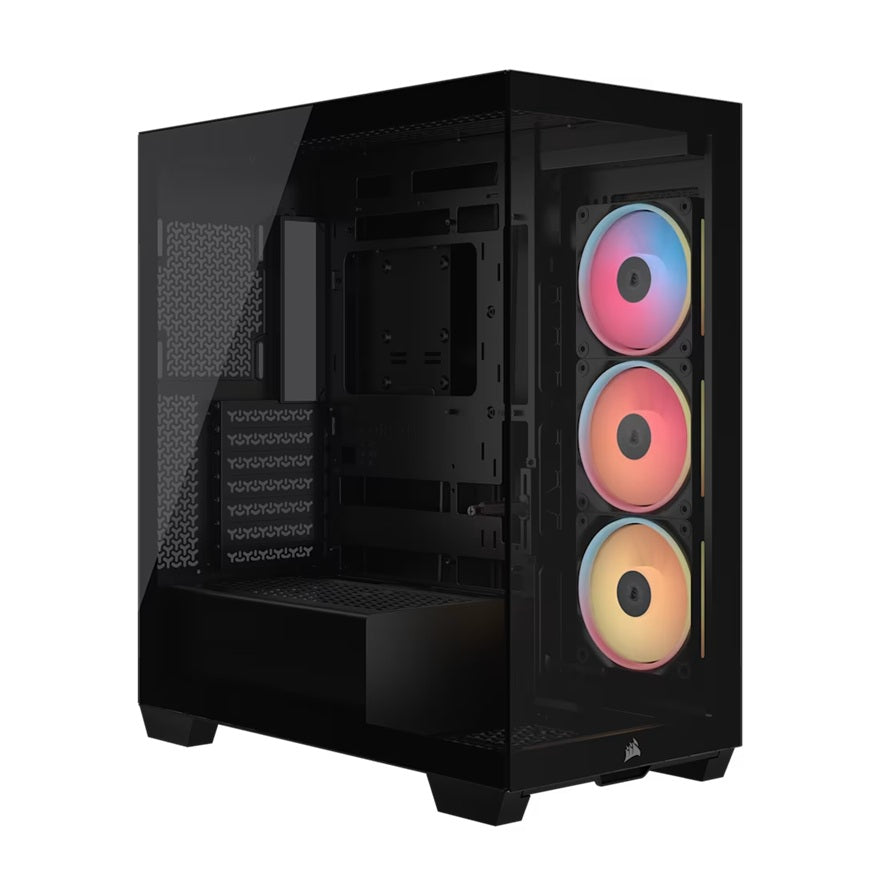

Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case - Black
Wraparound glass view with removable front and side panels
Three pre-installed iCUE LINK LX120-R fans with iCUE LINK System Hub
Builder-friendly features for a high-performance custom PC
Side, roof, and PSU fan mounting points for great cooling
Compatible with reverse connection motherboards
EDITION
3500 LX-R RGB iCUE LINK
BUILD WITHOUT BOUNDARIES
You don’t need a large footprint to build a decked-out PC. The 3500X accommodates most large graphics cards and CPU coolers, 360mm radiators, and even E-ATX motherboards, without taking up your entire desk.
REVERSE MOTHERBOARD SUPPORT
Validated for use with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards featuring connections on the back of the board, so your view isn’t spoiled by cables.
INCLUDES iCUE LINK LX120-R RGB PERFORMANCE FANS
Three LX120-R RGB reverse rotor fans and an iCUE LINK System Hub enable you to take advantage of a revolutionary ecosystem for an easier build. These fans undergo months of rigorous testing to ensure they deliver powerful, efficient airflow that keeps your system running at its best.
COOLING PERFORMANCE
Strong cooling is paramount for a modern PC, and the 3500X excels with side, roof, and PSU fan mounts so you can cover all the angles. And with 360mm radiator mounting points in the side and roof, you’ll have plenty of potential for liquid cooling.
| Case Supported Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) | |
| Case Height 506 | |
| Case Length 460 | |
| Case Width 240 | |
| Material Steel, Tempered Glass | |
| Color BLACK | |
| Case Size Mid-Tower | |
| Radiator Compatibility 120mm, 140mm, 240mm, 280mm, 360mm | |
| Case Window Tempered Glass | |
| Compatible Liquid Coolers H60, H100, H115, H150 (All Series) | |
| Case Warranty 2 Year | |
| Internal 3.5' Drive Bays 2 | |
| Internal 2.5' Drive Bays 2 | |
| Maximum CPU Cooler Height 170mm | |
| Maximum PSU Length 180mm | |
| Case Front IO (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out | |
| Maximum GPU Length 425mm | |
| Weight 10.9kg | |
| Case Expansion Slots 7 Horizontal (or 4 Vertical) | |
| Case Power Supply ATX | |
| Radiator Support - Top 360mm, 280mm, 240mm | |
| Radiator Support - Front None | |
| Radiator Support - Bottom None | |
| Radiator Support - Side 360mm, 280mm, 240mm | |
| Radiator Support - Rear 1x 120mm | |
| Fan Support - Top 3x 120mm; 2x 140mm | |
| Fan Support - Front None | |
| Fan Support - Bottom 3x 120mm; 1x 140mm | |
| Fan Support - Side 3x 120mm; 2x 140mm | |
| Fan Support - Rear 1x 120mm | |
| Front IO Motherboard Connections 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL | |
| Reverse Connector Motherboard Support Yes | |
| Included Fans iCUE LINK LX Series | |
| Dust Filtration Yes | |
| Cable Routing Space 45mm | |
| RapidRoute Included Compatible (Sold Separately) | |
| Left Side Panel Tempered Glass | |
| Right Side Panel Steel | |
| Vertical Mount Support Supported (Riser Card Sold Separately) | |
| Left Side Panel Tempered Glass | |
| Right Side Panel Steel | |
| Vertical Mount Support Supported (Riser Card Sold Separately) |
