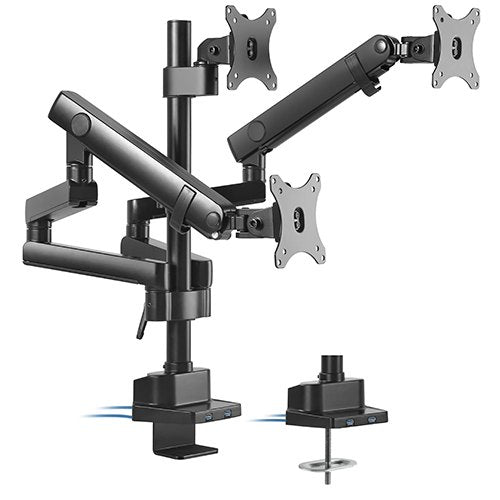

Brateck Triple Monitor Aluminum Slim Pole Held Mechanical Spring Monitor Arm Fit Most 17'-27' Monitors Up to 7kg per screen VESA 75x75/100x100
No more crawling under desks on your hands and knees! LUMI’s LDT20-C036UP Tripod Monitors Aluminum Slim Pole Held Mechanical Spring Monitor Arm comes with Top Fix fitting, which means this type of arm is perfect for limited space underside of the desktop. Providing 2 easily accessible 3.0 USB ports for charging and quality needed, its optimizing elbow spring gauge offers the performance and quality needed for weight adjustment. Quick-release VESA plate of exquisite structure and detachable joints make it an ideal support for longer life and easy installation.
Features
- Installs from Top Side: installs entirely from above the desk surface
- Built-in Spring Tension Mechanism: for perfect weight adjustments
- 2 easily accessible USB 3.0 ports
- Two Mounting Options: both desk clamp and grommet are included
- Smooth Arm Insertion: ensures easy installation
- Spring-Assisted Mechanism: allows to easily move up and down
- Detachable VESA Plate Design: enables easy installation
Specifications
| Product Category | Mechanical Spring Monitor Arm |
|---|---|
| Rank | Premium |
| Material | Aluminum,Plastic,Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Dimensions | 1416x176x649mm (55.7'x6.9'x25.6') |
| Fit Screen Size | 17'-27' |
| Fit Curved Monitor | Yes |
| Screen Quantity | 3 |
| Weight Capacity (per screen) | 0~7kg (0lbs~15.4lbs) |
| VESA Compatible | 75x75,100x100 |
| Tilt Range | +90°~-90° |
| Swivel Range | +90°~-90° |
| Screen Rotation | +90°~-90° |
| Arm Full Extension | 689mm (27.1') |
| Pole Height | 562mm (22.1') |
| Installation | Grommet,Clamp |
| Suggested Desktop Thickness | Clamp：10~50mm Grommet：10~50mm (Clamp：0.39'~2' Grommet：0.39'~2') |
| Quick Release VESA Plate | Yes |
| USB Port | 2xUSB 3.0 Port |
| Cable Management | Yes |
| Accessory Kit Package | Normal/Ziplock Polybag,Compartment Polybag |
| Instruction Manual Included | Yes |
