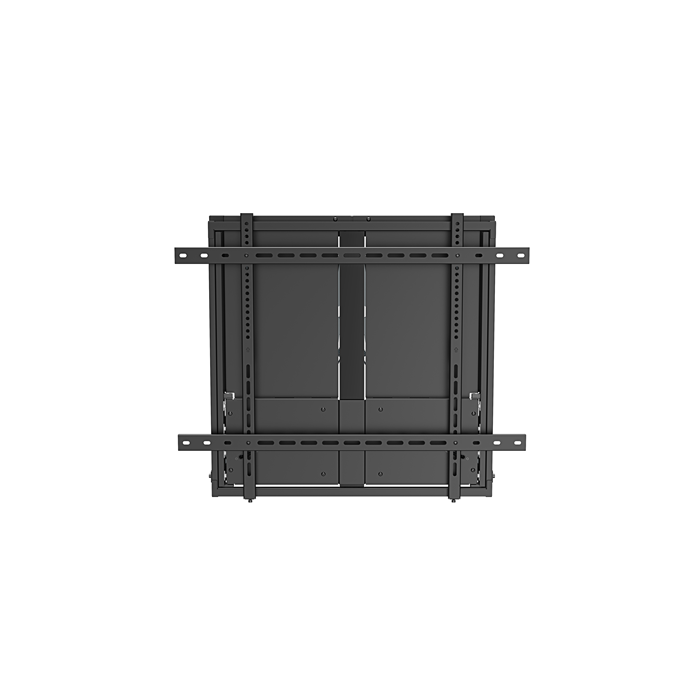

Brateck Manual Height-Adjustable Display Wall Mount for most 65'-86' TVs Weight Capacity: 35~65kg, VESA Compatible: 200x200 up to 800x600 Black
Brateck Manual Height-Adjustable Display Wall Mount for most 65'-86' TVs Weight Capacity: 35~65kg, VESA Compatible: 200x200 up to 800x600 Matte Black
Features
- Smooth and Effortless Height Adjustment: high-low adjustment with finger touch positioning
- Weight Balance Design: easily accommodates the different weights of displays
- Heavy-Duty steel construction holds the heaviest TVs with confidence.
- Compact Design: allows the mount to hide behind the screen when not in use
- High Quality Powder-Coated Finish: features a stylish anti-scratch surface
Specifications
| Product Category | Interactive Whiteboard Wall Mount |
|---|---|
| Rank | Premium |
| Material | Aluminum,Steel,Plastic |
| Metal Sheet Thickness | Bracket Arm THK=2.5mm pickling sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.098' pickling sheet,Wall Plate THK=0.12' pickling sheet) |
| Pipe Size | 30x15x1.2mm Square Steel Tube (1.2'x0.59'x0.047' Square Steel Tube) |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Dimensions | 107x840x696mm (4.2'x33.1'x27.4') |
| Fit Screen Size | 65'-86' |
| Fit Curved TV | No |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,350x350,400x400,600x300,400x600,600x400,700x400,800x400,600x600,800x500,800x600 |
| Max. Mounting Hole | 800x600 |
| Weight Capacity | 35~65kg (77lbs~143lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 107mm (4.2') |
| Screen Freely Tilting | No |
| TV Height Range | 400mm (15.7') |
| Installation | Solid Wall,Double Stud(406mm/450mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti-theft | No |
| Bubble Level | Hook-on Bubble Level(Included in Components Package) |
| Accessory Kit Package | Normal/Ziplock Polybag,Compartment Polybag |
