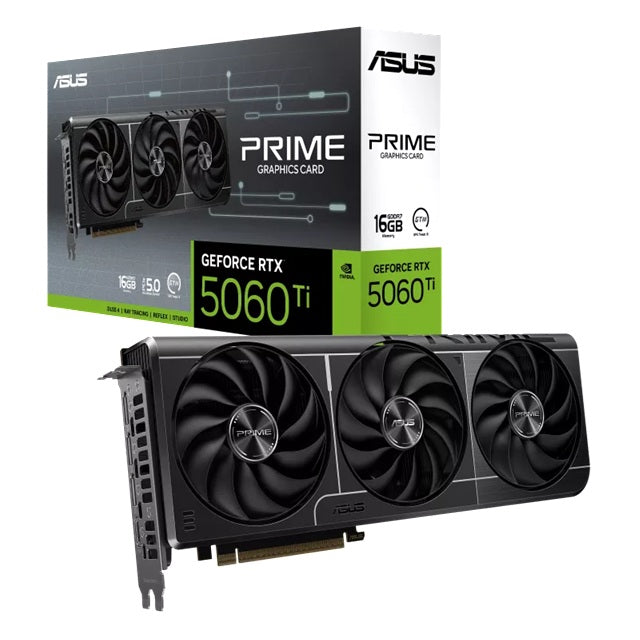

ASUS PRIME GeForce RTX™ 5060 Ti 16GB GDDR7
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage' feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
General| Brand | ASUS |
|---|
| Manufacturer part number | PRIME-RTX5060TI-16G |
|---|
| Warranty | 3 years |
|---|
Specifications| Model | PRIME-RTX5060TI-16G |
|---|
| Graphic Engine | NVIDIA® GeForce RTX™ 5060 Ti |
|---|
| AI Performance | 759 TOPs |
|---|
| Bus Standard | PCI Express 5.0 |
|---|
| OpenGL | OpenGL®4.6 |
|---|
| Video Memory | 16GB GDDR7 |
|---|
Engine Clock| OC mode | 2602MHz |
|---|
| Default mode | 2572MHz (Boost Clock) |
|---|
Specifications| CUDA Core | 4608 |
|---|
| Memory Speed | 28 Gbps |
|---|
| Memory Interface | 128-bit |
|---|
| Resolution | Digital Max Resolution 7680 x 4320 |
|---|
| Interface | Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3) |
|---|
| Maximum Display Support | 4 |
|---|
| NVlink/ Crossfire Support | No |
|---|
| Accessories | 1 x Speedsetup Manual
1 x ASUS Velcro Hook & Loop
1 x Thank You Card |
|---|
| Dimensions | 304 x 120 x 50mm |
|---|
| Recommended PSU | 550W |
|---|
| Power Connectors | 1 x 8-pin |
|---|
| Slot | 2.5 Slot |
|---|
