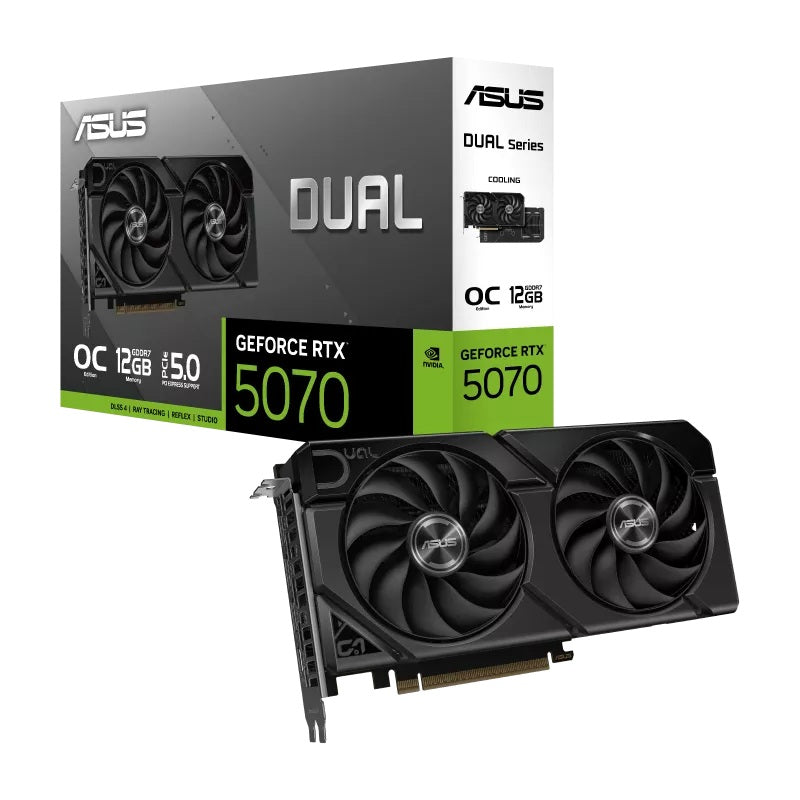

ASUS nVidia GeForce Dual RTX5070 OC 12G-EVO
ASUS Dual GeForce RTX™ 5070 EVO combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage' feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
General| Brand | ASUS |
|---|
| Manufacturer part number | DUAL-RTX5070-O12G-EVO |
|---|
| Warranty | 1 year |
|---|
Specifications| Model | DUAL-RTX5070-O12G-EVO |
|---|
| Graphic Engine | NVIDIA® GeForce RTX™ 5070 |
|---|
| AI Performance | 988 TOPs |
|---|
| Bus Standard | PCI Express 5.0 |
|---|
| OpenGL | OpenGL®4.6 |
|---|
| Video Memory | 12GB GDDR7 |
|---|
Engine Clock| OC mode | 2572MHz |
|---|
| Default mode | 2542MHz (Boost Clock) |
|---|
Specifications| CUDA Core | 6144 |
|---|
| Memory Speed | 28 Gbps |
|---|
| Memory Interface | 192-bit |
|---|
| Resolution | Digital Max Resolution 7680 x 4320 |
|---|
| Interface | Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3) |
|---|
| Maximum Display Support | 4 |
|---|
| NVlink/ Crossfire Support | No |
|---|
| Accessories | 1 x Speedsetup Manual
1 x Thank You Card
1 x Adapter Cable (1 to 2) |
|---|
| Dimensions | 229 x 120 x 50 mm |
|---|
| Recommended PSU | 750W |
|---|
| Power Connectors | 1 x 16-pin |
|---|
| Slot | 2.5 Slot |
|---|
| SFF Ready | Compatible |
|---|
