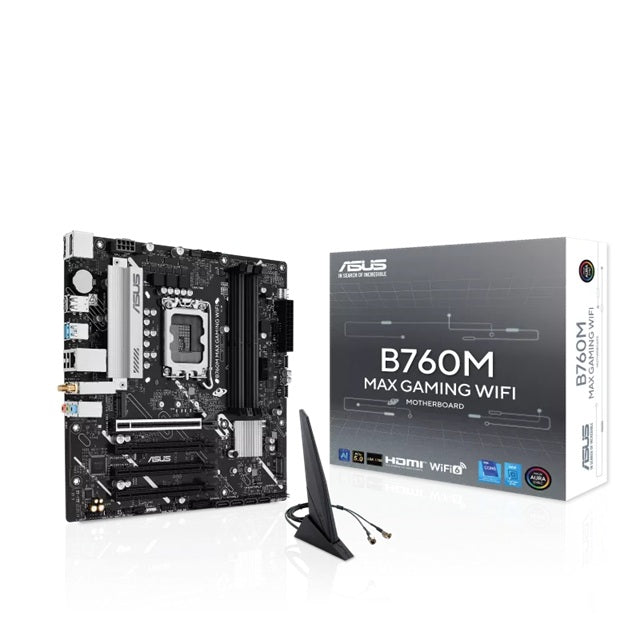

ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard Up to 192GB DDR5 (4x Slots), 1 x PCIe 5.0, 3 x M.2, 4 x SATA, WiFi 6, HDMI, DP
ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard Up to 192GB DDR5 (4x Slots), 1 x PCIe 5.0, 3 x M.2, 4 x SATA, WiFi 6, HDMI, DP
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel® LGA 1700 Socket: Ready for 14th ,13th and 12th Gen Intel® Core™ processors
Ultrafast Connectivity: PCIe 5.0, DDR5, three M.2 slots, Realtek 1Gb Ethernet, Wi-Fi 6, rear USB 10Gbps, front USB 5Gbps Type-C®
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers , easily synced with Aura Sync-capable hardware
CEC Tier II ready
Specifications
| Model | |
| B760M MAX GAMING WIFI | |
| CPU | |
| Intel® Socket LGA1700 for Intel® Core™14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* | |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | |
| Intel® B760 Chipset | |
| Memory | |
| 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Graphics | |
| 1 x DisplayPort** | |
| 1 x HDMITM port*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | |
| Intel® Core™ Processors (14th & 13th & 12th Gen) | |
| 1 x PCIe 5.0 x16 slot | |
| Intel® B760 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 2 x PCIe 4.0 x16 slot (support x1 mode) | |
| Note | To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
|---|---|
| Storage | |
| Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* | |
| Intel® Core™ Processors (14th & 13th & 12th Gen) | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| Intel® B760 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) | |
| 4 x SATA 6Gb/s ports | |
| * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Ethernet | |
| 1 x Realtek 1Gb Ethernet | |
| Wireless & Bluetooth | |
| Wi-Fi 6 | |
| Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5GHz frequency band | |
| Bluetooth® v5.3 | |
| *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
| USB | |
| Rear USB (Total 6 ports) | |
| 2 x USB 10Gbps ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 10 ports) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 5Gbps port (support USB Type-C®) | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | |
| Realtek 7.1 Surround Sound High Definition Audio CODEC* | |
| - Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| BIOS | |
| 128 Mb Flash ROM, UEFI AMI BIOS | |
| Operating System | |
| Windows® 11, Windows® 10 64-bit | |
| Form Factor | |
| mATX Form Factor | |
| 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
