ASUS AMD ROG STRIX X870-F GAMING WIFI (AM5) ATX Motherboard, DDR5 256GB, PCIe 5.0 x16, 4x M.2, 2x SATA, Wi-Fi 7, 2.5Gb LAN, 2x USB4, 1x HDMI, 1x DP
ASUS
ASUS AMD ROG STRIX X870-F GAMING WIFI (AM5) ATX Motherboard, DDR5 256GB, PCIe 5.0 x16, 4x M.2, 2x SATA, Wi-Fi 7, 2.5Gb LAN, 2x USB4, 1x HDMI, 1x DP
Regular price
$752.40
Regular price
Sale price
$752.40
Unit price
per

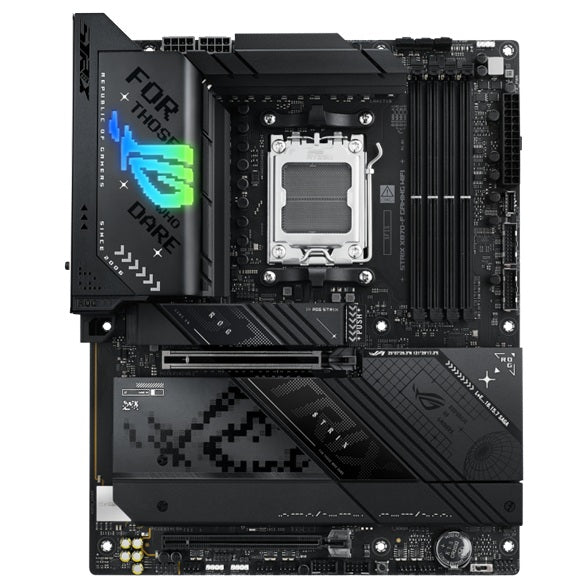

ASUS AMD ROG STRIX X870-F GAMING WIFI (AM5) ATX Motherboard
he ROG Strix X870-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance, while dual USB4® ports, WiFi 7 and high-speed DDR5 slots provide cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
Specifications
| Model | |
| ROG STRIX X870-F GAMING WIFI | |
| News & Updates | |
| Socket AM5 | |
| CPU | |
| AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* | |
| Chipset | |
| AMD X870 | |
| Memory | |
| 4 x DIMM slots, max. 256GB, DDR5 | |
| Supports up to 8000+MT/s(OC) with Ryzen™ | |
| 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory*' | |
| Dual channel memory architecture | |
| Supports AMD Extended Profiles for | |
| Overclocking (EXPO™) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| Graphics | |
| 1 x DisplayPort** | |
| 1 x HDMI™ port*** | |
| 2 x USB4® (40Gbps) ports support USB | |
| Type-C® display outputs**** | |
| * Please refer to AMD CPU specifications. | |
| ** Supports max. 8K@30Hz as specified in | |
| DisplayPort 1.4. | |
| Expansion Slots | |
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors* | |
| 1 x PCIe 5.0 x16 slot (supports x16 mode) | |
| AMD Ryzen™ 8000 Series Desktop Processors* | |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** | |
| AMD X870 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| Storage | |
| Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* | |
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors* | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** | |
| AMD Ryzen™ 8000 Series Desktop Processors** | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**** | |
| AMD X870 Chipset | |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** | |
| M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| 2 x SATA 6Gb/s ports | |
| Ethernet | |
| 1 x Intel® 2.5Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | |
| Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)* | |
| 2x2 Wi-Fi 7** (802.11be) | |
| Supports 2.4/5/6GHz frequency band*** | |
| Supports Wi-Fi 7 320MHz bandwidth | |
| Bluetooth® v5.4**** | |
| SB | |
| Rear USB (Total 12 ports) | |
| 2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)* | |
| 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)** | |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| Front USB (Total 9 ports) | |
| 1 x USB 20Gbps connector (supports USB Type-C®) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | |
| ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* | |
| - Impedance sense for front and rear headphone outputs | |
| - Supports | Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking |
|---|---|
| - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input | |
| - Supports up to 32-Bit/384 kHz playback on front panel' | |
| Audio Features | |
| - SupremeFX Shielding Technology | |
| - Savitech SV3H712 AMP | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Audio cover | |
| BIOS | |
| 256 Mb Flash ROM, UEFI AMI BIOS | |
| Manageability | |
| WOL by PME, PXE | |
| Operating System | |
| Windows 11 | |
| Form Factor | |
| ATX Form Factor | |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
