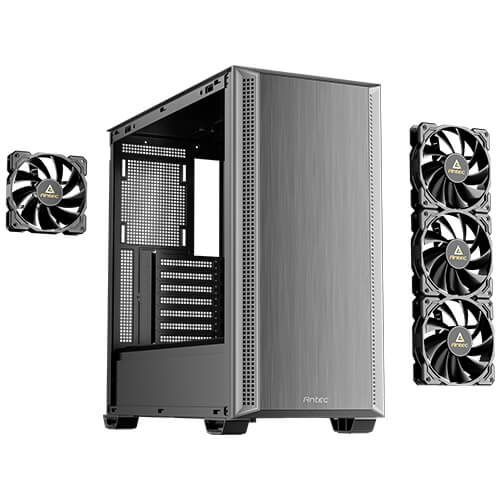

Antec P7 S 478 x 222 x 465 mmATX/M-ATX/ITX, Steel + Plastic, USB-C 3.2, 4×120mm PWM fans, 360mm radiator, GPU 405mm, PSU 270mm Mid-Tower ATX Case
General| Brand | Antec |
|---|
| Manufacturer part number | P7 S |
|---|
Case Specification| Dimensions | 478 x 222 x 465 mm (DWH) |
|---|
| Form Factor | Mid Tower |
|---|
| Materials | Steel + Plastic |
|---|
| Mainboard Support | ATX , M-ATX , ITX |
|---|
| Front Access & Controls | Power , Reset , USB3.0 x 2,Type-C 3.2 Gen 2 (10Gbps) x 1 , Headphone/Mic Combo Jack |
|---|
| Side Panel | Steel Side Panel + Sound Dampening Foam |
|---|
Drive Bays| Expansion Slots | 7 |
|---|
| 3.5' / 2.5' | 2 / 1 |
|---|
| 2.5' | 1 |
|---|
Fan| Front | 3 x 120mm / 2 x 140mm |
|---|
| Top | 3 x 120mm / 2 x 140mm |
|---|
| Power Supply Shroud | 2 x 120mm |
|---|
| Rear | 1 x 120mm |
|---|
| Included Fan(s) | 3 x 120mm PWM fans at the front + 1 x 120mm PWM fan at the rear |
|---|
Radiator Support| Front | 120 / 140 / 240mm |
|---|
| Top | 120 / 240 / 360mm |
|---|
| Rear | 120mm (Length ≤160mm) |
|---|
Clearance| Max GPU Length | ≤405mm |
|---|
| Max CPU Cooler Height | ≤175mm |
|---|
| Max PSU Length | (Cable included) ≤270mm |
|---|
Miscellaneous| Dust Filter | Top / Bottom |
|---|
| Net Weight | 5.75Kg |
|---|
| Gross Weight | 7.20Kg |
|---|
| Warranty | 2 Years |
|---|
