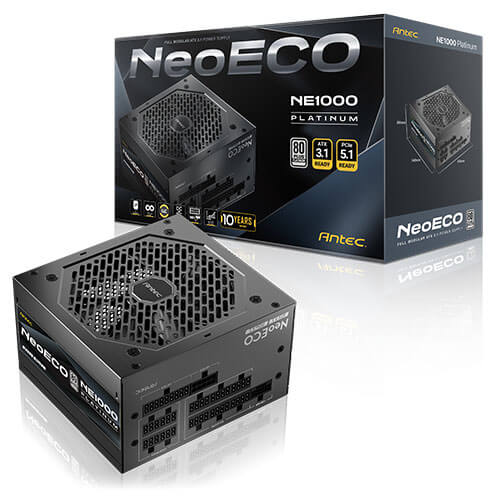

Antec NE1000P AU, 1000W, 80 PLUS Platinum, ATX 3.1, PCIe 5.1 (12V-2x6), Full Modular, Active PFC, 120mm FDB Fan, 10Y Warranty
Antec NE1000P AU
Introducing the NeoECO Platinum ATX3.1 power supply, crafted to deliver exceptional performance and rock-solid stability for gamers and enthusiasts. Featuring next-generation ATX 3.1 and PCIe 5.1 support, high-quality Japanese capacitors, and 80 PLUS® Platinum efficiency, it ensures outstanding and consistent power delivery. The PhaseWave™ design provides smooth, reliable output, while the 120 mm FDB silent fan delivers efficient, quiet cooling. Its fully modular design allows for easy cable management, and the Zero RPM Manager intelligently controls fan operation, activating it only when needed to balance silent performance with optimal cooling. Backed by the CircuitShield™ suite of industrial-grade protections, the NeoECO Platinum ATX3.1 is a powerful, efficient, and dependable choice for modern PC builds.
| General | |
|---|---|
| Brand | Antec |
| Manufacturer part number | NE1000P AU |
| Specifications | |
| Model | NE1000 PLATINUM ATX3.1 |
| Safe Model | X8000A587EU-25 |
| Type | ATX 12V 3.1 |
| Dimension | 140(L)*150(W)*86(H) |
| Modular | Full-Modular |
| Warranty | 10 years |
| Input Voltage | 100V-240V |
| Input Current | 12A-6A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-150ms |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Output Capacity | 1000W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / |
| BSMI / 3C / UKCA / ICES | |
| Fan | 120mm FDB Silent Fan |
| Certifications | 80 Plus Platinum |
| Connector | 1 x 24(20+4)pin MB 1 x 16(12+4)pin PCIE 5.1 12V-2x6 2 x 8(4+4)pin CPU 3 x 8(6+2) Pin PCI-E 9 x SATA 3 x Molex |
