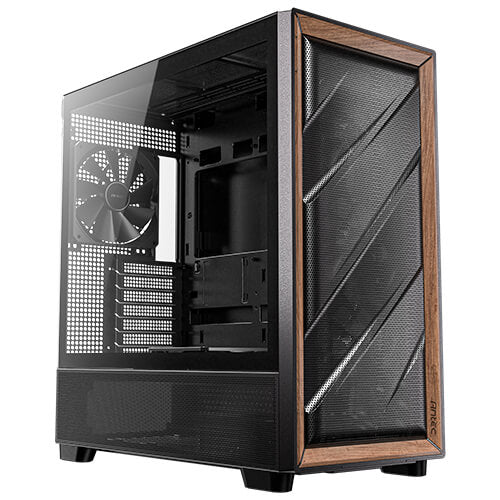

Antec Flux - Black, Mid Tower, E-ATX/ATX/Micro-ATX/ITX, Tempered Glass, Wood Front, USB-C 10Gbps, 5× PWM Fans, 2Yr Wty
Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 5 fans included, delivering enhanced GPU cooling performance.
Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.
Flux Vertical Cooling
Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics card.
Flux Horizontal Cooling
Air intake via the front mesh provide smooth venting channel throughout the case.
Premium Wood Material
Front panel is crafted with a combination of metal mesh and wood (birch) to create a high-quality texture with different materials, integrating seamlessly into your home design.
Optimized Chassis Design
Front is recessed, fostering better airflow and reducing wind noise.
Removable Top Cooling Bracket
Mount the fans/radiators on the cooling bracket first and install the cooling bracket back to the case.
Recommended Water Cooling
Supports simultaneous installation of Front 360mm radiator + Top 360mm radiator.
Extreme Water Cooling
Supports simultaneous installation of Front 420mm push-pull radiator + Top 280mm radiator.
General| Brand | Antec |
|---|
| Manufacturer part number | FLUX-BK |
|---|
main spec| Dimensions | 484 x 239 x 502 mm (DWH) |
|---|
| Form Factor | Mid Tower |
|---|
| Materials | Steel + Plastic + Wood |
|---|
| Mainboard Support | E-ATX (≤330mm), ATX, Micro-ATX, ITX |
|---|
| Front Access & Controls | Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack |
|---|
| Side Panel | 4mm Tempered Glass |
|---|
Drive Bays| Expansion Slots | 7 |
|---|
| 3.5' /2.5' | 2/2 |
|---|
| 2.5' | 1 |
|---|
Fan Support| Front | 3 x 120mm / 3 x 140mm |
|---|
| Top | 3 x 120mm / 2 x 140mm |
|---|
| Power Supply Shroud | 2 x 120mm / 2 x 140mm |
|---|
| Rear | 1 x 120mm / 1 x 140mm |
|---|
| Included Fan(s) | 3 x 120mm PWM fans in front + 1 x 120mm PWM Reverse fan on PSU shroud + 1 x 140mm PWM fan in rear |
|---|
Radiator Support| Front | 120 / 140 / 240 / 280 / 360 / 420mm |
|---|
| Top | 120 / 140 / 240 / 280 / 360mm |
|---|
Specifications| Rear | 120 / 140mm |
|---|
Clearance| Max GPU Length | ≤408mm |
|---|
| Max CPU Cooler Height | ≤180mm |
|---|
| Max PSU Length | (Include cable) ≤235mm (with HDD) |
|---|
Miscellaneous| Dust Filter | Bottom |
|---|
| Net Weight | 9.27Kg |
|---|
| Gross Weight | 10.64Kg |
|---|
| Warranty | 2 Years |
|---|
